Understanding Manhole Cover Gratings and Their Practical Uses

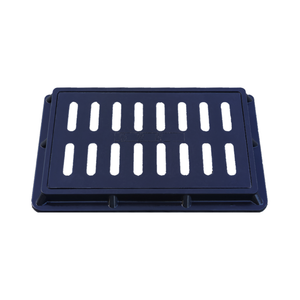

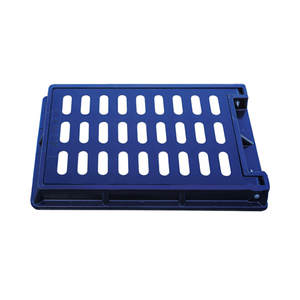

A manhole cover grating is a strong, open grid. It sits on top of a manhole. Water can go through it, but big things cannot. A grating is not solid like a regular manhole cover. It lets rainwater drain into the pipes below. Cities use gratings to keep people and cars safe. They cover open manholes. Gratings help stop accidents and flooding. They also keep trash and leaves out of the drains. This helps water keep moving. People check the covers often. Good designs help each cover stay safe and work well.

Key safety roles of manhole cover gratings include:

• Stopping people, bikes, and cars from falling in.

• Helping water drain fast to stop street floods.

• Keeping trash out so pipes do not get blocked.

• Making sure only the right people can get inside.

Key Takeaways

• Manhole cover gratings keep people and cars safe. They cover open manholes but let water pass through. Gratings stop flooding by letting rainwater go into drains. They also block trash so drains do not get clogged. Gratings are made from strong materials like galvanized steel and ductile iron. These materials help gratings last long and not rust. They can hold heavy things without breaking. Safety rules like ADA standards help make gratings safe. These rules stop accidents and help workers get in easily. Cleaning and checking gratings often keeps them working well. This helps cities stay safe, have good drainage, and protect the environment.

Manhole Cover Grating

Definition

A manhole cover grating is a metal or composite grid. It sits on top of a manhole. Water can go through the grating, but big things cannot. Cities and towns use gratings to protect underground spaces. The grating helps keep people, animals, and cars safe. It covers open manholes. There are different types of manholes. Some are for inspection, some are for drops, and some are for junctions. Each type uses a special grating or cover for its job.

Manhole cover gratings are found in many places. Cities put them over sewage systems and stormwater drains. They also go on electrical cable chambers. Factories use gratings that do not rust. Homes may pick gratings that are quiet and look nice. Airports and ports need strong, light gratings for busy areas.

Function

The main job of a manhole cover grating is to give access and protection. Workers use the grating to reach pipes, cables, or chambers. They clean and fix things underground. The grating lets rainwater go into the drains. This helps stop flooding. It also keeps out leaves and trash. This keeps pipes clear and means less fixing.

A manhole cover grating does many things:

1. Lets workers check and fix things safely.

2. Helps water drain fast during storms.

3. Stops people from getting in without permission.

4. Blocks trash and dirt from clogging pipes.

5. Protects wires and stops shocks.

6. Helps with wires and lets air move.

7. Lets sensors watch the environment.

8. Makes cities look better with nice designs.

New ideas have made gratings work better. Makers use ductile iron, steel, and composite materials now. These last longer and do not rust as fast. Some gratings use recycled stuff to help the planet. Others have rough tops so people do not slip. Some have smart sensors to check things in real time.

Differences from Solid Covers

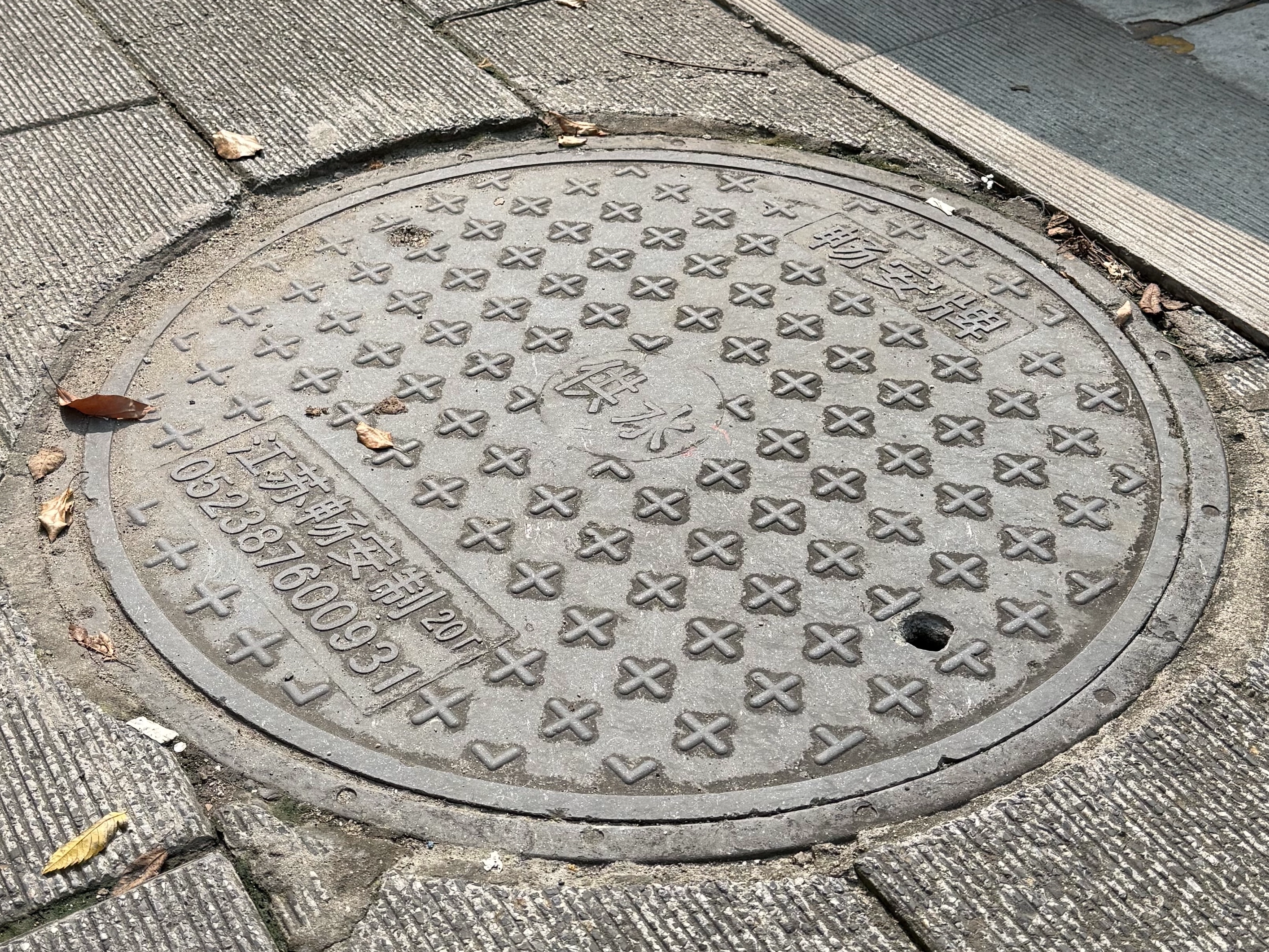

A manhole cover grating is not the same as a solid cover. A solid cover is a flat, heavy plate. It closes the manhole all the way. No water, air, or trash can get in. Solid covers are often made of cast iron or concrete. They are very strong but also heavy. They are hard to move and cost more to put in and fix. They can rust over time.

A manhole cover grating is lighter and has holes or slots. Water can go through the grating. This helps with drainage. Gratings are easier to put in and move. But they may need cleaning more often. Trash can get stuck in the holes.

Here is a table that shows how gratings and solid covers are different:

Rules also help decide which cover to use. In the United States, ADA rules say slots in a manhole cover grating must be less than half an inch wide. The slots must go across the path to help wheelchair users. Other rules like EN 124 and ASTM set strength and safety standards. Airports and factories use covers that meet the highest load classes, like F900.

Note: A manhole lets people safely reach pipes and cables underground. Picking the right cover or grating helps cities stay safe, dry, and easy to fix.

Materials

Galvanized Steel

Galvanized steel is the most used material for a steel grating cover. Makers pick it because the zinc layer stops rust and bad weather. This layer helps the grating last longer, even in rainy or dirty places. Stainless steel is also used a lot. It is strong and looks shiny. Some places use aluminum or fiberglass, but not as much. Most cities like steel grating covers. They can hold heavy things and do not break easily.

• Common materials for grating covers:

• Galvanized steel

• Stainless steel

• Aluminum

• Fiberglass

Durability

Steel grating covers must be tough in busy places. Galvanized steel gratings work well with lots of cars and trucks. The zinc layer keeps rust away and means less fixing. These covers can take forklifts and even last in acid rain or salty air. But if the zinc gets scratched, rust can spread fast. Factories often paint or change their covers every 15 years. Fiberglass gratings last longer where there are strong chemicals. Still, steel grating covers are best for roads and sidewalks because they last a long time.

Tip: Serrated or treaded tops help stop slips when wet.

Construction

Good building makes sure the grating works and lasts. Workers pick the right steel grating cover for the job. They clean the area and check the frame for any damage. Then, they use cement mortar to set the frame and make it level with the road. All bolts and screws must be tight. After putting in the grating, they look for gaps to keep out water and dirt. Checking and cleaning often helps stop rust or cracks. Good building and care keep the grating safe for everyone.

Manhole Cover Uses

Manhole covers are used in many places. You can find them on busy roads and in quiet parks. Each grating helps keep people safe. They also help water drain and let workers reach pipes underground. The next parts talk about how these covers help cities and towns.

Safety

Safety is the main reason for putting a grating over a manhole. Cities put these covers on roads, sidewalks, parks, and work sites. They stop people, bikes, and cars from falling in. Gratings keep the ground flat. This lowers the chance of tripping or slipping.

There are rules for how to make and put in these covers. For example, the Americans with Disabilities Act (ADA) says holes in walking areas must be less than half an inch wide. This rule helps people in wheelchairs, walkers, or with canes move safely. The slots must go across the path, not along it.

Cities get lots of reports about loose or missing covers. These problems can cause people to fall or cars to get damaged. Bad weather, theft, or not fixing covers can cause these issues. City workers must check and fix covers to keep everyone safe.

Note: Stopping accidents means checking covers often and following safety rules.

Drainage

Another big use for manhole cover gratings is drainage. These covers let rainwater go into the drains below. If water cannot drain, streets and sidewalks can flood fast during storms. Gratings help stop floods by letting water in but blocking big things.

Designers make special patterns in the grating to let in more water and stop clogs. Long drains, like trench grates, stop puddles and keep roads safe. Gratings must be even with the ground so water drains well. In parks and playgrounds, these covers help keep dirt from washing away by moving water away from play areas.

Gratings made from steel or fiberglass do not rust easily. Cleaning and checking them often helps the drains work and stops floods.

Debris Blocking

Stopping debris is another big job for manhole cover gratings. Leaves, trash, and dirt can block the drains if they get in. Gratings act like filters. They let water through but stop big things. This keeps pipes clear and means less fixing.

Engineers make slot shapes to catch trash but let water pass. Some covers have built-in traps or baskets to make cleaning easier. In factories, covers that do not get hurt by chemicals keep bad waste out of the drains. In homes, covers help keep gardens and driveways free from water and trash.

Tip: Cleaning gratings often helps water drain well and stops floods.

Access Control

Access control is also important for manhole cover gratings. Only trained workers should go underground to fix pipes or wires. New covers use locks and bolts to stop people from getting in or stealing them.

Workers like covers that are light or have hinges. These are easier and safer to open for checks or repairs. Some covers have rough tops and quick-release parts for emergencies, like gas leaks or power problems. In schools, hospitals, and utility rooms, covers that do not carry electricity or magnets are safer.

• Checking covers often keeps them safe and working.

• Hinged or light covers make work easier for crews.

• Locks and rough tops protect both workers and the public.

• FRP covers are much lighter than metal and make it safer to get underground.

Manhole covers are used for many things, like sewage and stormwater. Each grating helps stop floods, prevent accidents, and keep drains clear. These covers are very important for keeping cities safe and working well.

Manhole Cover Grate Benefits

Infrastructure Support

Manhole cover gratings help cities in many ways. They use strong materials like ductile iron and concrete. Ductile iron covers are lighter than old cast iron ones. They are also stronger and easier for workers to move. Concrete covers are very strong and do not crack easily. Both types last a long time and do not need to be replaced often. They do not rust, so they protect pipes and wires below. These things help cities save money and keep people safe on roads and sidewalks.

• Lighter covers are easier to put in place.

• Strong covers can hold heavy cars and trucks.

• Covers that do not rust work well in bad weather.

• Long-lasting covers mean less money spent on new ones.

• Recyclable covers help the planet.

Composite manhole covers also help cities stay safe and work better. They can be made in many shapes and sizes for different places.

Environmental Protection

Manhole cover gratings help keep the environment clean. They stop too much water from getting into sewers. Studies show that tight covers stop leaks. Most covers do not let water leak, so sewers do not overflow. When cities use sealed covers, they keep dirty water out of rivers and lakes.

Drain grates move rainwater into pipes and block trash. This keeps drains clear and stops water from getting dirty. Sealed covers and extra plates stop water from leaking through cracks. These steps help cities control water and keep it clean.

Tip: Checking and cleaning gratings often keeps drains working and stops pollution.

Public Safety

Manhole cover gratings help keep people safe in busy places. Heel-proof grates stop people from tripping, even in high heels. They follow ADA rules so everyone can use sidewalks. Strong covers made from ductile iron and composite do not break in bad weather. Their design keeps trash from piling up and causing danger.

• Heel-proof covers stop trips and falls.

• ADA rules make sure everyone can use walkways.

• Strong covers can handle lots of cars and rain.

• Covers that do not carry electricity keep people safe.

• Covers that are not worth much are not stolen.

Ductile iron covers are best for busy streets. Composite covers are light, so workers can move them safely. They do not carry electricity, so people do not get shocked. Cities use these covers in places like gas stations and sidewalks to keep everyone safe.

Manhole cover gratings help make streets safer and keep water moving. These gratings do not rust easily and can handle bad weather. Cities save money because people do not steal them for scrap. Special designs help the covers fit in with each area. City planners pick smart gratings to control rainwater and keep nature safe. Homeowners see less flooding and roads are safer. Learning about grating options helps everyone build better, cleaner, and nicer places to live.

FAQ

What is the main purpose of a manhole?

A manhole lets workers get underground. They use it to check, clean, or fix pipes and cables. This helps cities keep drains and sewers working right.

How does a grating cover help with accident prevention?

A grating cover stops people, bikes, and cars from falling in. It keeps everyone safe by covering open holes and holding heavy things.

Why is efficient water drainage important for cities?

Good water drainage stops floods when it rains hard. Gratings let rainwater go into drains. This keeps roads and sidewalks safe and dry.

What are the different types of manholes and their applications?
