Product OverviewRecommended load ≤8T, capable of bearing pedestrians and small work vehicles, well-matching the dual needs of water meter well operation and drainage;
Rectangular drainage hole design improves drainage efficiency, helping reduce water accumulation around water meter wells while facilitating water meter maintenance.
SMC composite material has decent resistance to erosion in humid environments, with an expected service life of over 18 years under proper use;
The surface material is not easy to adhere to sludge, making daily cleaning and maintenance relatively convenient.
Non-metallic material has no recycling value, which can alleviate the theft issue of traditional cast-iron water grate & water meter covers to some extent;
Integrates water grate and water meter inspection functions, eliminating the need for additional drainage facilities and simplifying scenario supporting.
Weighing about 22kg (vs. ~40kg for the same-sized cast-iron product), it can be installed/maintained by a single person, helping reduce operation labor costs.
| Parameter | Specification | Description |
|---|---|---|

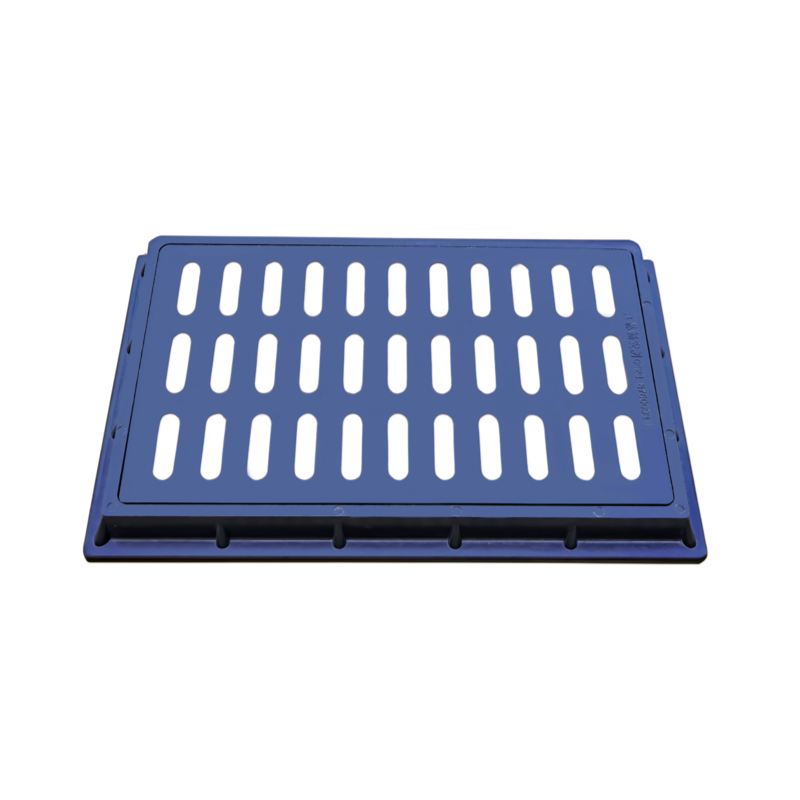

| Product Size | 750×450mm (Rectangular) | Common matching size for water meter wells |
| Material | SMC/FRP glass fiber-reinforced composite | Adapted to humid environments |
| Recommended Load | ≤8T | Suitable for pedestrians and small work vehicles |
| Structural Design | Integrated rectangular drainage holes (water grate function) | Balances drainage and water meter inspection needs |
| Contact Info | jschangan111@gmail.com (customizable logo) | Manufacturer contact email |
| Applicable Environment | Residential water meter wells, roadside municipal water meter wells | Resistant to mild humidity and corrosion |
| Service Life | ≥18 years | Actual service life depends on usage scenarios and maintenance conditions |
Residential water meter wells (with drainage function)
Roadside municipal water meter wells
Courtyard integrated water meter well & drainage facilities
Supporting small branch road water meter wells
| Feature | Chang’an Brand Composite Product | Traditional Cast-Iron Product |
|---|---|---|
| Weight (750×450 size) | ~22kg | ~40kg |
| Drainage Efficiency | High (integrated drainage holes) | Requires additional drainage facilities |
| Anti-Theft Performance | Relatively high | Relatively low (prone to theft) |
| Annual Maintenance Cost | ≤45 RMB (drainage hole cleaning) | ≥280 RMB (rust removal + desilting) |
Clean debris from the water meter well opening and confirm the support frame’s compatibility with the opening;
Align the drainage holes (preferably toward the water accumulation side), lay the cover, and fasten the buckles;
Conduct a light pressure test to confirm the cover’s stable fit.
Clean debris from drainage holes every 2 weeks to keep drainage unobstructed;
Inspect buckle firmness every 6 months (focused verification is recommended after the rainy season);
No additional anti-corrosion treatment is required. If damaged, send an email to jschangan111@gmail.com to contact the manufacturer for replacement coordination.
With over 10 years of experience in composite manhole cover production, its water grate products have passed relevant certifications for municipal small facility materials;
Supports customization of sizes and drainage hole layouts to meet different water meter well scenario needs;
Door-to-door delivery is available for bulk orders, with supporting basic installation guidance.
