Standard sewer lids usually weigh between 90 and 150 pounds, though larger covers can reach up to 250 pounds. The weight depends on material and size. Cast iron lids are the heaviest, while composite lids weigh less. Proper weight helps keep sewer lids secure and safe during use and handling.
Sewer lids often weigh from 90 to 250 pounds. The weight depends on their size and what they are made of. Cast iron lids are the heaviest ones. People use them in places with lots of traffic. Composite lids are much lighter. They are easier for people to move. Picking the right weight and material is important. It helps keep sewer lids safe and secure. It also makes them easier for workers to handle.
What a manhole cover is made of changes its weight. The most common materials are cast iron, ductile iron, steel, and composite. Cast iron covers are the heaviest ones. Composite covers are much lighter than cast iron. Ductile iron covers are strong but not as heavy as cast iron. The table below shows how much covers weigh by material and size:

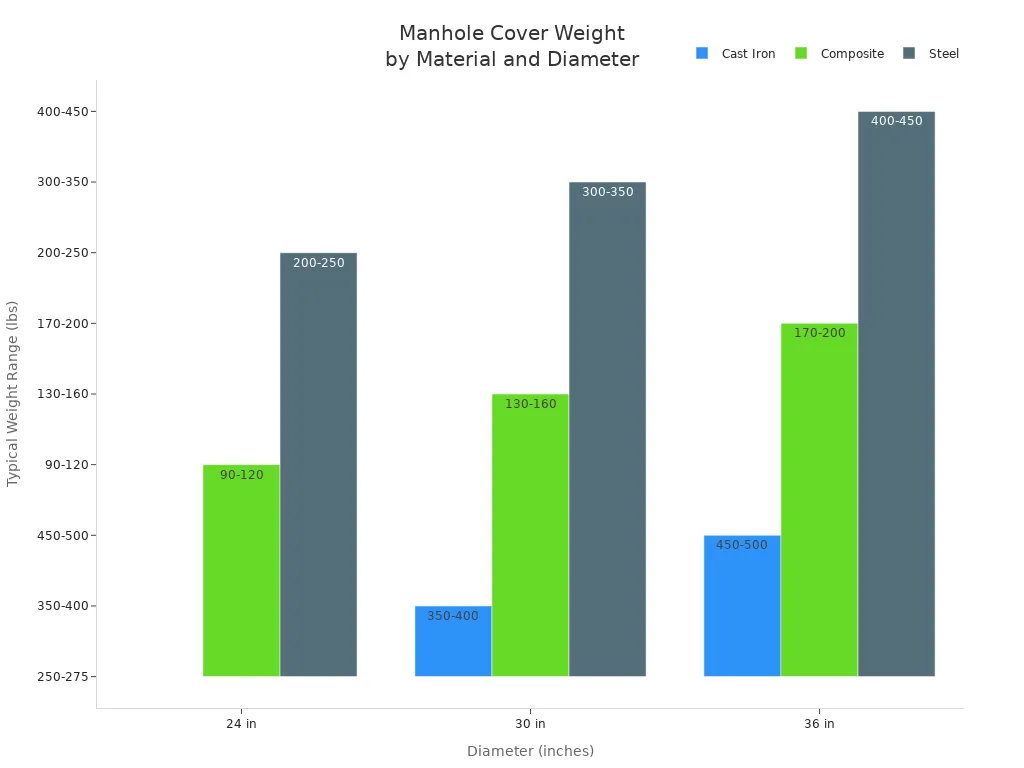

| Material | Diameter (inches) | Typical Weight Range (lbs) |
|---|---|---|
| Cast Iron | 24 | 250 - 275 |
| Cast Iron | 30 | 350 - 400 |
| Cast Iron | 36 | 450 - 500 |
| Ductile Iron | 24 | 165 - 250 |
| Ductile Iron | 36 | 275 - 400 |
| Steel | 24 | 200 - 250 |
| Steel | 30 | 300 - 350 |
| Steel | 36 | 400 - 450 |
| Composite | 24 | 90 - 120 |
| Composite | 30 | 130 - 160 |
| Composite | 36 | 170 - 200 |
Cast iron and ductile iron covers are used where cars and trucks drive. These covers are strong and can handle heavy loads. Composite covers are used in places with less traffic. Composite covers can be up to 70% lighter than cast iron. This makes them easier to pick up and put in place.
Note: Composite covers are lighter and not worth much as scrap, so people do not steal them.
The size of a manhole cover changes how much it weighs. Bigger covers use more material, so they weigh more. Most city sewer lids weigh between 90 and 250 pounds. The heaviest covers can weigh up to 500 pounds. These are used in busy or industrial places.
Here is a table that shows weights by size and material:

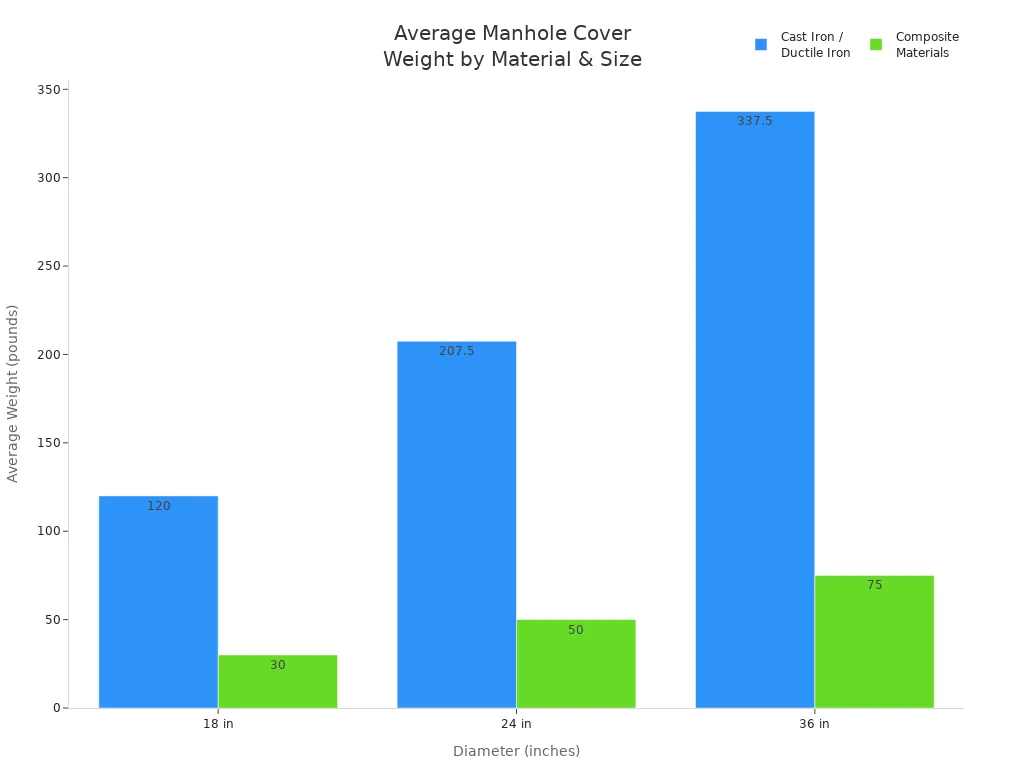

| Diameter (inches) | Cast Iron (lbs) | Ductile Iron (lbs) | Composite (lbs) |
|---|---|---|---|
| 18 | 90 - 150 | 90 - 150 | 20 - 40 |
| 24 | 165 - 250 | 165 - 250 | 40 - 60 |
| 36 | 275 - 400 | 275 - 400 | 60 - 90 |
A 24-inch cast iron cover usually weighs about 250 pounds. Ductile iron covers for the same size are a little lighter. Composite covers for 24 inches can weigh only 40 pounds. This makes composite covers much easier to move and install.
People often want to know how much a manhole cover weighs. The answer depends on what it is made of, its size, and how strong it needs to be. Most sewer lids in the U.S. weigh between 90 and 250 pounds. Some cast iron covers for highways or airports can weigh up to 500 pounds. Ductile iron covers are lighter than cast iron but still very strong. Composite covers are much lighter, often under 100 pounds for a 36-inch cover.
Tip: Always check the load class before picking a manhole cover. Covers for walking areas can be light. Covers for roads or airports must be very strong.
There are some special cases. Some covers made from PPE plastic or FRP can weigh just 25 pounds. Extra-heavy covers for factories or airports can weigh 400 to 500 pounds. The weight of a manhole cover depends on where it will be used and how safe it needs to be.

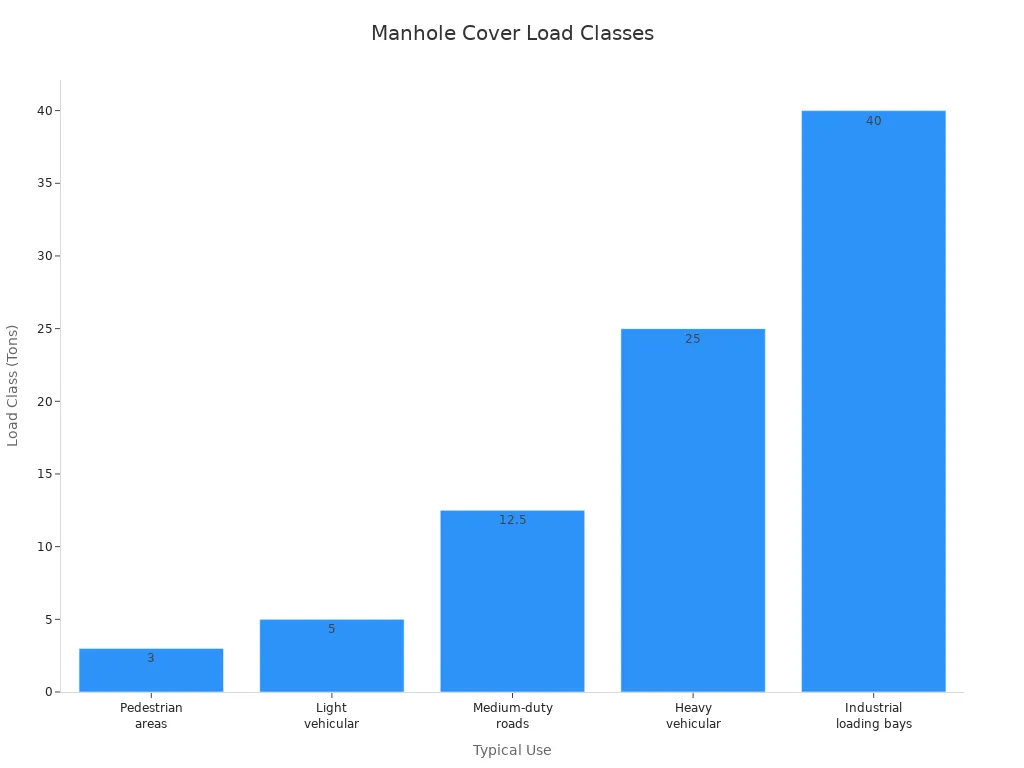

| Load Class (Tons) | Typical Use Description |
|---|---|
| 3T | Pedestrian areas, parks, gardens, walkways |
| 5T | Light vehicular traffic, housing complexes |
| 12.5T | Medium-duty roads, commercial zones |
| 25T | Heavy vehicular roads, main urban roads |
| 40T | Industrial loading bays, ports, airports |
What a manhole cover is made of changes how much it weighs. Cast iron covers are the heaviest. These are used where lots of cars drive. Ductile iron covers are not as heavy but still strong. Composite covers are made from fiberglass and resin. They are much lighter and do not rust. Steel covers are strong but add more weight. Some covers use plastic with steel inside to stay light and strong.
Composite covers are light, easy to move, and last longer in tough places.
Cast iron and steel covers are heavy and can rust, which means more repairs.
Thieves do not steal composite covers because they are not worth money.
Aluminum covers are light and work well where there is not much traffic.
| Manhole Cover Type | Material | Weight (approx.) | Key Features |
|---|---|---|---|
| Cast Iron | Cast iron | Heavy | Strong, lasts long, used for roads |
| Ductile Iron | Ductile iron | Medium | Flexible, lighter than cast iron |
| Composite | Fiberglass, resin | Light | Does not rust, easy to put in |
| Steel | Steel | Heavy | Holds a lot of weight, does not rust easily |
| Plastic + Steel Reinforcement | PPE plastic + steel | Very light | Easy to move, used for lighter jobs |
How big a manhole cover is changes its weight. Bigger covers need more material, so they weigh more. Covers for busy roads or airports must be thick and strong. These covers hold up heavy trucks and planes. Rules like AASHTO M306 make sure covers pass hard tests. For example, H20/HS20 covers must hold 40,000 pounds. When size and load rating go up, the weight goes up too.

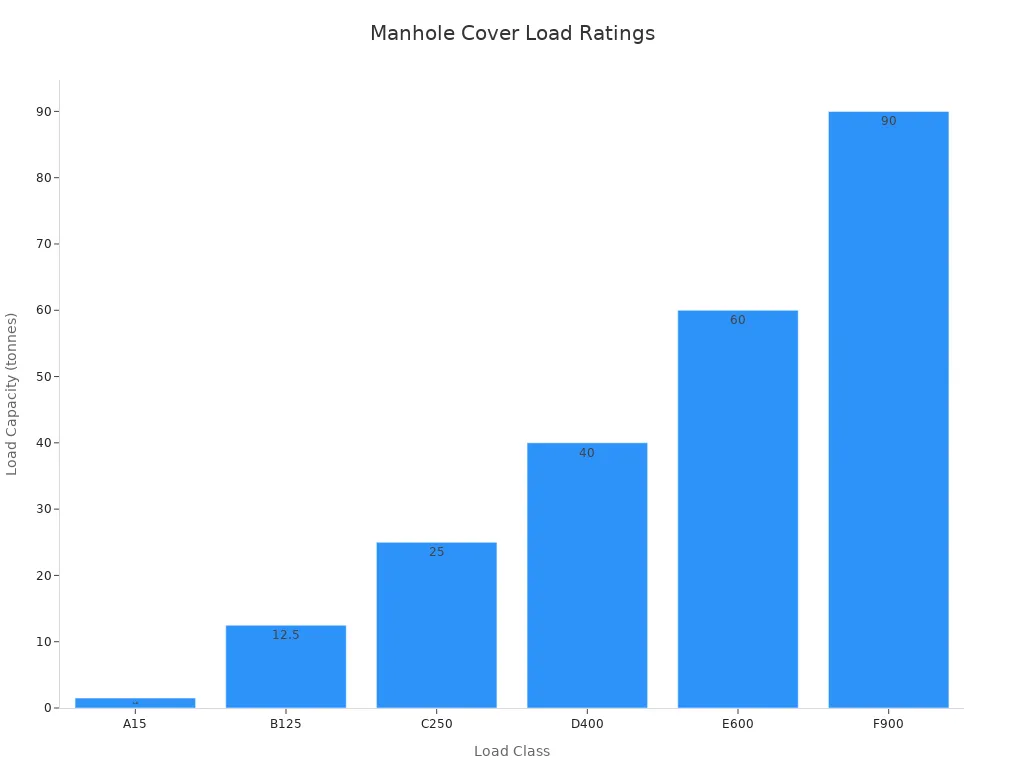

| Load Class | Load Capacity (tonnes) | Typical Use Case |
|---|---|---|
| A15 | 1.5 | Sidewalks, parks |
| B125 | 12.5 | Driveways, parking lots |
| C250 | 25 | Stores, drains by the curb |
| D400 | 40 | Main roads, highways |
| E600 | 60 | Factories, docks |
| F900 | 90 | Airports, places with big machines |
Manhole cover weight is important for many reasons:
Heavy covers stay put and keep people safe.
Their weight stops theft and keeps people from opening them without tools.
Lighter covers, like composites, are easier to move and safer for workers.
Picking the right weight helps plan how much all the covers will weigh.
Covers that are too heavy make fixing things harder and cost more.
Composite covers last longer and do not need much fixing because they do not rust.
Tip: Workers should use the right tools and safety gear when lifting heavy covers to stay safe.
Manhole cover weight keeps people safe by stopping accidents and blocking bad gases. It also makes sure only trained workers can open them. Picking the right cover means thinking about traffic, weather, and how often it will be opened.
Manhole covers often weigh from 90 to 250 pounds. The weight changes with the material, size, and load class. Heavier covers help keep underground systems safe in busy places. It is important to pick a cover that fits where it will be used. People should think about how and where the cover will be used.
Most city manhole covers weigh from 90 to 250 pounds. The heaviest covers are found on busy streets or in factories.
Note: Workers use special tools to lift these covers safely.
A round cover will not fall into the hole. This shape helps workers move and roll the cover more easily.
It is not safe for one person to lift a heavy cover. Workers use hooks or machines to help so they do not get hurt.
