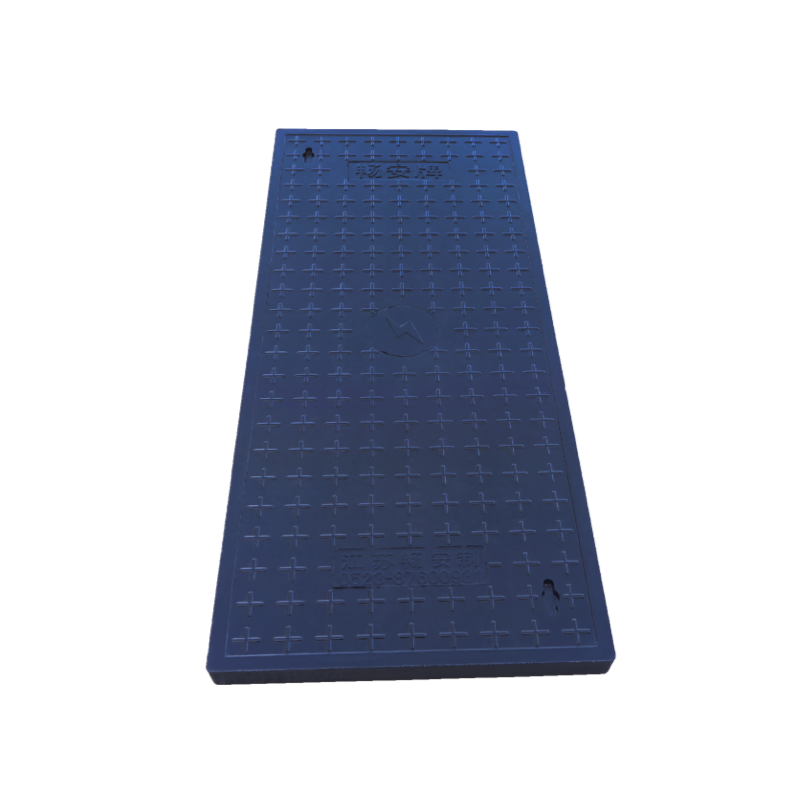

The 1200×500 composite cable trench cover plate is designed to provide long-term protection for power cables, communication pipelines, and underground utility channels. Manufactured with high-strength SMC/FRP composite material, this trench cover delivers excellent mechanical performance, corrosion resistance, and safety.
It is widely used in urban road cable trenches, industrial plants, substations, telecom facilities, and municipal infrastructure projects.
This model features optimized weight, superior durability, and anti-theft properties, making it an ideal replacement for traditional cast-iron trench covers.
The cover plate supports heavy-duty loads (optional C250 / D400 / E600), suitable for vehicle lanes, industrial roads, and logistics areas.
Its reinforced composite structure ensures long-term stability without cracking or deformation.
Compared with cast iron, composite trench covers weigh 30–50% less, significantly reducing labor intensity and improving installation efficiency on large-scale projects.
The FRP/SMC material is resistant to rust, chemical corrosion, moisture, and UV exposure—ideal for coastal areas, chemical industries, and outdoor environments.
The composite material provides full electrical insulation, preventing sparking and improving safety in power substations and communication rooms.
Non-metallic composite plates have no recycling value, greatly reducing theft incidents and maintenance costs for municipal clients.
Thanks to its stable material properties, the product typically offers a 20-year+ service life, even in challenging environments.
Product Size 1200 × 500 mm Standard cable trench dimensions
Material SMC / FRP composite reinforced with fiberglass Lightweight & high-strength
Load Rating C250 / D400 / E600 (optional) Suitable for pedestrian to heavy truck lanes
Surface Finish Anti-slip texture, UV resistant Improves safety & durability
Operating Temperature −40°C to +120°C Suitable for outdoor & industrial use
Service Life ≥20 years Low maintenance
Applications
Urban cable trench systems
Power substations & transformer rooms
Telecom & communication cable channels
Industrial plants & factory floors
Roadside utility pipelines
Rail transit, metro, and public facilities
This model (1200×500) is especially suited for medium and wide power trenches and industrial equipment cable channels.
Performance Comparison: Composite vs. Cast Iron
Feature Composite Cover Plate Cast Iron Cover Plate
Weight 40–50% lighter Heavy & labor-intensive
Corrosion Resistance Excellent Rusts easily
Electrical Insulation Non-conductive Conductive
Anti-Theft High (no recycle value) Easily stolen
Installation Fast, 1-person operation possible Requires multiple workers
Maintenance Cost Low High
Installation & Maintenance Guide
Installation Steps
Clean the cable trench surface
Place the support frame or groove edge
Position the trench cover plate
Apply fixing bolts or locking mechanism (if required)
Conduct load test and level check
Maintenance Recommendations
Inspect monthly for debris or blockage
Clean the surface to maintain anti-slip function
Check fixing points after heavy rain or construction activity
Why Choose Us
Over 15 years of composite trench cover manufacturing experience
ISO-certified factory with strict quality control
Customization available: size, color, load rating, logo printing
Fast delivery for engineering projects
Professional technical support & after-sales service
Q1: What load rating does the 1200×500 cover plate support?
A: C250, D400, and E600 levels are available depending on the application.
Q2: Can you customize colors or surface textures?
A: Yes, customized options can be produced based on project requirements.
Q3: Is composite material safer than cast iron?
A: Yes. It is non-conductive, corrosion-resistant, lightweight, and anti-theft.
Q4: Do you provide samples?
A: Samples can be provided—please contact us for details.
Q5: How long is the product’s service life?
A: Typically 20 years or more with normal use.
