A High-Performance Municipal Infrastructure Solution

I. Product R&D Background: Addressing Industry Pain Points and Breaking Through Performance Bottlenecks of Traditional Manhole Covers

Currently, the mainstream resin composite material inspection manhole covers in the market generally adopt the production formula of "resin as the polymer base material + steel bars and glass fibers as reinforcing materials + calcite powder as the filler". Although this formula has the advantages of simple production process and relatively low raw material cost, it exposes many unavoidable defects during long-term use, which seriously affect the stability and safety of municipal infrastructure:

Insufficient structural strength: The thickness of the thinner parts of the manhole cover surface usually does not exceed 18mm. After long-term exposure to external forces such as vehicle rolling and pedestrian treading, holes are prone to appear on the surface. This not only affects the integrity of the appearance but also may further reduce the load-bearing capacity of the manhole cover, creating potential safety hazards.

Poor durability: The steel bar protective layer of traditional manhole covers is prone to fall off under environmental erosion (such as rainwater, moisture, corrosive substances) or external impact, resulting in the internal steel bars being directly exposed to the external environment, which in turn causes the steel bars to rust. Rusting of steel bars will greatly weaken the overall structural strength of the manhole cover and directly shorten its service life.

Failure to meet load-bearing standards: For heavy-duty manhole covers that need to be used in heavy-load scenarios such as fast lanes, the load-bearing capacity of traditional products often fails to meet industry standards or national standards. Their service life on fast lanes is generally no more than 5 to 8 years, and very few products can exceed 10 years of service life. Frequent replacements not only increase the cost of municipal operation and maintenance but also affect the efficiency of road traffic.

To solve the above industry pain points, our company has invested a huge amount of R&D funds, established a professional technical team, and conducted in-depth research on the mechanical properties of materials and actual market application needs for 8 years. With the core goals of "improving the structural stability of manhole covers, extending their service life, and meeting the needs of heavy-load scenarios", the team, on the basis of the first-generation prototype product, through repeated tests and optimization upgrades, finally broke through the limitations of traditional design and successfully developed the revolutionary and innovative Chang'an Road Manhole Cover. This product adopts an overall reinforced structural design with an arc-shaped bottom and innovatively uses steel bars and FRP bars as dual reinforcing bars, completely solving the performance defects of traditional manhole covers in terms of both structure and materials. Since 2006, relying on its excellent performance, the product has been recognized and verified in practical applications by more than 200 user units. In 2008, it successfully won the invention patent certificate authorized by the State Patent Office, becoming a benchmark product for technological innovation in the industry.

II. Core Performance Characteristics of Chang'an Manhole Covers: Multi-Dimensional Breakthroughs to Reshape the Quality Standards of Manhole Covers

Relying on its unique structural design and material selection, Chang'an Road Manhole Covers have achieved comprehensive breakthroughs in multiple dimensions such as load-bearing capacity, service life, safety, environmental adaptability, and user experience. The specific performance characteristics are as follows:

1. Excellent Load-Bearing Capacity: Strong Adaptability to Heavy-Load Scenarios, Far Exceeding Industry Standards

Chang'an Manhole Covers ensure leading load-bearing performance in the industry through both "thickness design" and "structural reinforcement":

Thickness guarantee: The thickness of the thinnest part of the cover surface is strictly controlled to be ≥ 30mm. Compared with the thickness of the thinner part of traditional manhole covers (≤ 18mm), the overall structural strength is greatly improved, effectively avoiding the problem of holes appearing on the surface after long-term use.

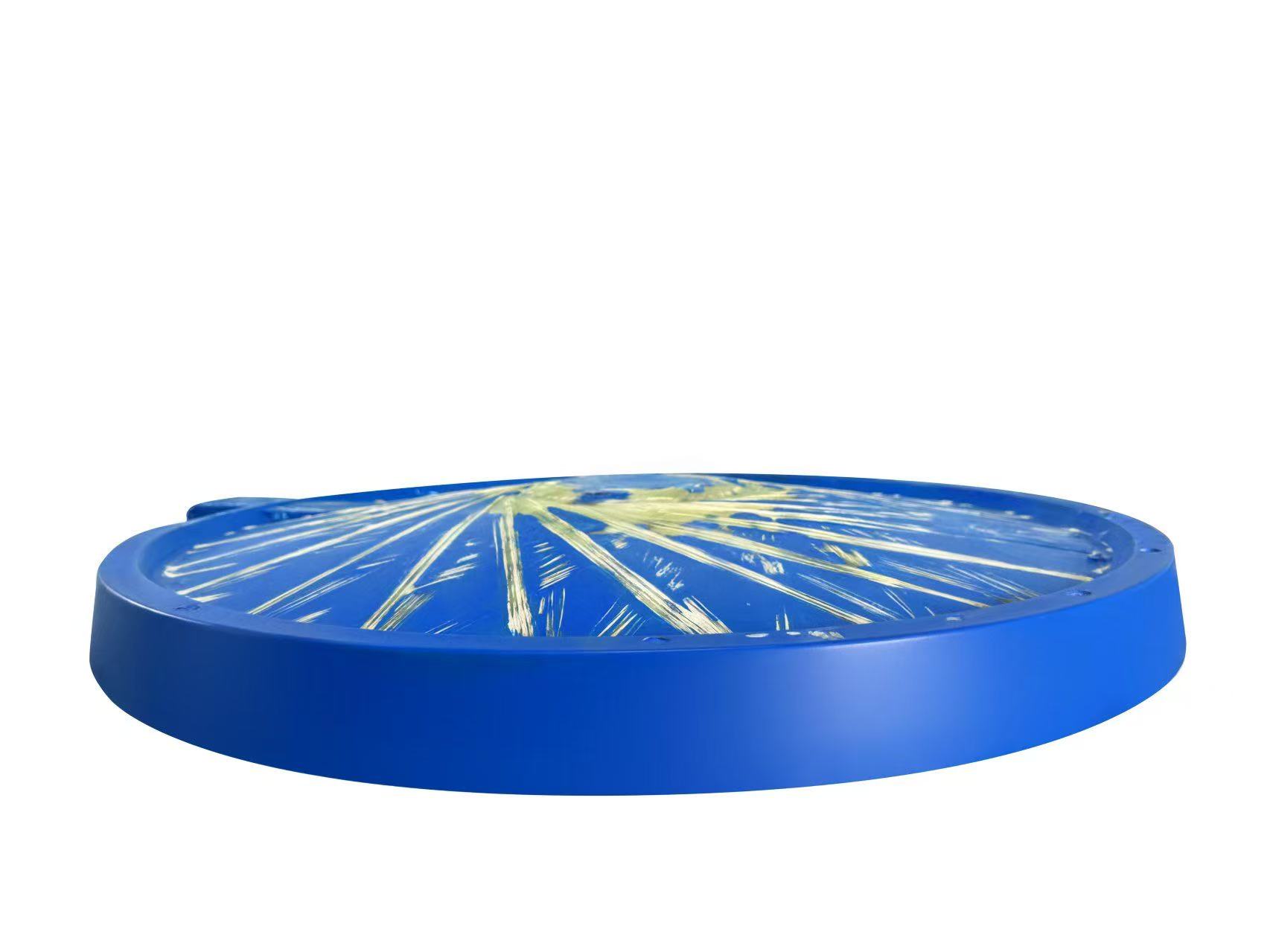

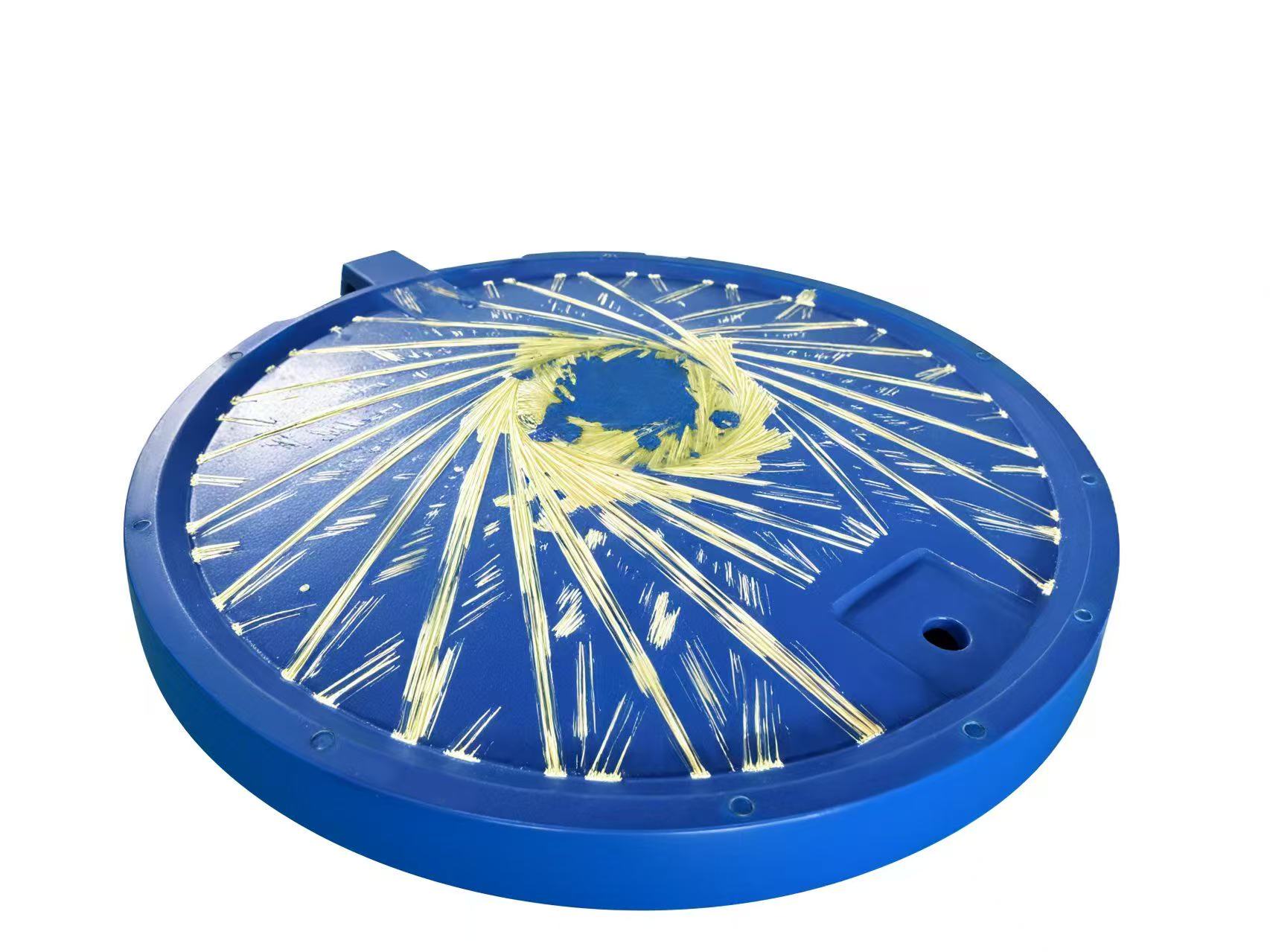

Reinforced structure: The bottom adopts an overall FRP reinforcement design. Combined with the dual reinforcement effect of steel bars and FRP bars, the manhole cover can bear forces more evenly, and its deformation resistance is significantly improved.

Compliance with standards: Verified by authoritative testing, the load-bearing level of Chang'an Manhole Covers can meet or exceed international standards. Whether it is applied to sidewalks, slow lanes, or heavy-load scenarios with high load-bearing requirements such as fast lanes and industrial parks, it can stably bear external loads, completely solving the pain point that traditional heavy-duty manhole covers fail to meet load-bearing standards.

2. Extended Service Life: Resistance to Aging and Fatigue, Surpassing the 20-Year Service Threshold

Traditional manhole covers have a relatively short service life due to problems such as steel bar rusting and easy structural damage. However, through scientific structural design and material selection, Chang'an Manhole Covers have achieved a leapfrog improvement in service life:

Anti-rust design: The "steel bar + FRP bar" dual reinforcement scheme is adopted. FRP bars have excellent corrosion resistance and rust resistance. When used in conjunction with steel bars, they can effectively avoid the problem that a single metal bar is prone to rusting, fundamentally eliminating the impact of steel bar rusting on the service life of the manhole cover.

Strict test verification: Before being launched on the market, the product has undergone strict aging resistance tests and fatigue resistance tests. Even in complex environments such as high temperature, low temperature, humidity, and ultraviolet radiation, it can still maintain stable structural performance, and is not prone to problems such as aging cracking and fatigue deformation.

Breakthrough in service life: Actual application data shows that the service life of Chang'an Manhole Covers can exceed 20 years. Compared with the service life of traditional manhole covers (5-8 years), the service life is extended by more than twice, which greatly reduces the replacement frequency and operation and maintenance costs of municipal departments.

3. Strong Anti-Theft Performance: Comprehensive Security Assurance from Material to Design

The theft of manhole covers or inaccurate resetting is a common problem in municipal management, which not only affects road traffic safety but also may lead to the loss of property in the manhole. Chang'an Manhole Covers build a complete anti-theft system from two aspects: "root cause anti-theft" and "active protection":

Material anti-theft: Polymer materials are used as the base material. This material has no recycling value, which fundamentally eliminates the theft motivation of lawbreakers and naturally has excellent basic anti-theft properties.

Locking device design: To address the problem of manhole cover loss or inaccurate resetting caused by human factors, the company can equip the manhole cover with a dedicated locking device according to the actual needs of customers. This device can not only ensure that the manhole cover is always in the correct position during use, avoiding safety accidents caused by displacement, but also further protect the safety of cables, equipment, and other property in the manhole, achieving "dual anti-theft and accurate resetting".

4. Strong Environmental Adaptability: Resistance to High and Low Temperatures, Corrosion, and Good Insulation, Suitable for Complex Scenarios

The service environment of urban municipal facilities is complex and diverse. Some scenarios (such as chemical industrial parks, cold regions, high-temperature road sections, and power manholes) have extremely high requirements for the environmental adaptability of manhole covers. Through material optimization and process improvement, Chang'an Manhole Covers have comprehensive environmental adaptability:

High and low-temperature resistance: The product can maintain stable structural performance in extreme low-temperature environments (below -30℃) and high-temperature environments (above 60℃), without problems such as low-temperature brittleness and high-temperature softening deformation, making it suitable for use in cold northern regions and hot southern regions.

Strong corrosion resistance: The material of the manhole cover does not react with corrosive substances such as acids, alkalis, and salts. Even when used in corrosion-prone scenarios such as chemical industrial parks and coastal humid areas for a long time, there will be no problems such as surface damage and structural rusting, effectively extending the service life in special environments.

Excellent insulation performance: The product does not contain any metal additives and has excellent electrical insulation performance. It can be safely used in scenarios such as power manholes and communication manholes where the risk of electric leakage needs to be avoided, eliminating safety accidents caused by the conductivity of manhole covers.

5. Green Environmental Protection and Comfortable Experience: Anti-Skid and Low Noise, Conforming to Urban Development Needs

While ensuring performance, Chang'an Manhole Covers also pay attention to green environmental protection attributes and user experience, conforming to the needs of modern cities for "green development and livable construction":

Environmental protection attribute: On the production side, the product adopts new polymer composite materials. Compared with traditional cast iron manhole covers or ordinary resin manhole covers, the production process can reduce energy consumption, without the need for high-energy-consuming processes such as high-temperature smelting and heavy forging, reducing the environmental burden in the production process from the source.

Anti-skid design: The surface of the manhole cover is treated with a special texture to increase the friction with vehicle tires and pedestrian shoe soles. Even in wet environments such as rainy days, it can effectively prevent vehicles from skidding and pedestrians from falling, improving the safety of use.

Low-noise performance: Traditional manhole covers are prone to produce harsh noise when rolled over by vehicles, affecting the lives of surrounding residents. Through structural optimization and material characteristics, Chang'an Manhole Covers will not loosen or shift when rolled over by vehicles, effectively avoiding noise generation, reducing urban noise pollution from the source, and creating a quiet and comfortable living environment for residents.

6. High Convenience in Use: Light Weight, Improving Operation and Maintenance Efficiency

Municipal staff frequently carry out manhole cover installation and maintenance work. The weight and operational convenience of manhole covers directly affect the efficiency of operation and maintenance. Chang'an Manhole Covers fully consider the operation and maintenance needs in their design:

Lightweight design: The optimized combination of polymer materials and dual reinforcing bars is adopted. While ensuring strength, the overall weight of the manhole cover is greatly reduced. Compared with traditional cast iron manhole covers or heavy resin manhole covers, the weight is reduced by more than 30%.

One-handed operation: The lightweight design allows staff to open and close the manhole cover with one hand, without relying on heavy equipment or multi-person collaboration. This greatly shortens the operation time during installation and maintenance, significantly improves the efficiency of municipal operation and maintenance work, and reduces labor costs.

III. Summary of Product Value: From Solving Industry Pain Points to Improving Municipal Efficiency

After 8 years of technological research and continuous optimization, Chang'an Road Manhole Covers, based on two core innovations of "arc-shaped bottom overall reinforced structure" and "steel bar + FRP bar dual reinforcement", have achieved comprehensive breakthroughs in load-bearing capacity, service life, anti-theft performance, environmental adaptability, and user experience. It not only completely solves the industry pain points of traditional resin composite manhole covers, such as "easy damage at thin parts, easy rusting of steel bars, failure to meet load-bearing standards, and short service life", but also adapts to diversified application scenarios such as urban roads, chemical industrial parks, power communication, and residential communities through characteristics such as lightweight, low noise, anti-skid, and insulation.

Since 2006, the application verification of more than 200 user units and the certification of national invention patents have fully proved the performance reliability and market recognition of Chang'an Manhole Covers. As a municipal infrastructure product with "high performance, long service life, easy operation and maintenance, and higher safety", Chang'an Manhole Covers can not only reduce the long-term operation and maintenance costs of municipal departments but also improve the safety of urban road traffic and the quality of residents' lives, providing a high-quality solution for the upgrading and transformation of municipal infrastructure in modern cities.
