Installing the wrong infrastructure casting carries severe operational risks. A mismatched surface solution triggers localized flooding, exposes subterranean utilities to catastrophic water damage, and results in strict regulatory compliance failures. Facility managers, civil engineers, and urban planners face a constant challenge on site. We must balance efficient surface water management with secure underground utility access. Every installation must also adhere to rigorous load and safety standards. Choosing the correct casting requires a strict evaluation framework. You must analyze specific application requirements. Load ratings dictate structural safety, while hydraulic capacity determines flood prevention success. Material durability impacts long-term viability, and retrofitting compatibility affects installation timelines. Understanding the technical divide between a solid cover and a permeable grate prevents infrastructure failures. This guide provides the technical criteria needed to make an informed specification and ensure your site remains safe, compliant, and fully operational under heavy traffic conditions.

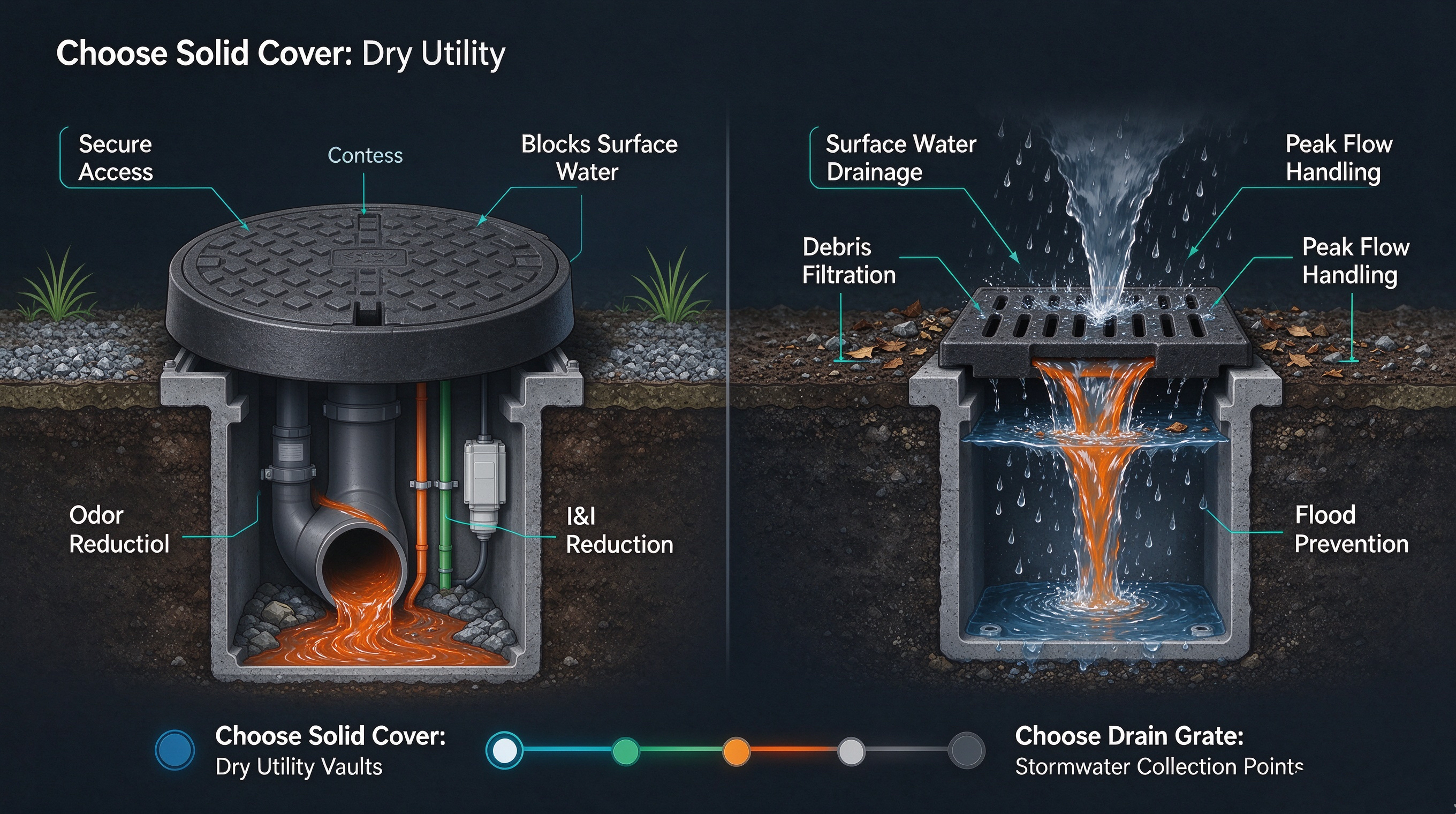

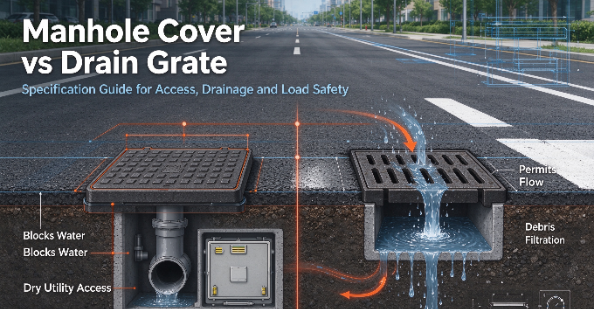

Primary Function Dictates Selection: Manhole covers are engineered for secure, dry access to underground utilities (sewers, electrical, telecom), whereas drain grates are designed specifically for surface water collection and debris filtration.
Load Class is Non-Negotiable: Both solutions require strict adherence to traffic load ratings (e.g., AASHTO H-20/HS-20 or EN 124 classes) based on the installation environment.
Compliance Drives Design: Pedestrian areas require ADA-compliant, heel-proof drain grates and slip-resistant solid covers to mitigate liability and ensure public safety.
Material Impacts Lifecycle Performance: While ductile iron remains the industry standard for heavy traffic, composite materials are increasingly specified to combat corrosion, metal theft, and enable smart-grid sensor integration.
Table of Contents
Solid manhole covers are used to protect underground utility chambers from traffic, debris, and surface water. They are suitable for sanitary sewers, electrical vaults, and telecommunications systems, especially where workers need access for maintenance or heavy equipment such as vacuum trucks. Sealed or gasketed covers also help reduce water entry and control sewer odors, which is important for sanitary and electrical applications.
A Drain Grate is designed to collect surface water in catch basins, trench drains, and curb inlets. Its openings allow rainwater to enter the drainage system while keeping larger debris out. The grate must provide enough open area to handle the expected rainfall and prevent water buildup, especially in flood-prone locations, and regular cleaning is needed to keep the openings clear.
Some long utility trenches need both drainage and protection. Solid covers can protect sections containing cables, valves, or other sensitive equipment, while grated sections can collect surface runoff in open areas. Using both types along the same trench can protect underground utilities while managing rainwater, but the frames must be aligned correctly and installed at the same level to avoid gaps or trip hazards.
Feature | Manhole Cover | Drain Grate |
|---|---|---|
Primary Function | Utility access and protection | Surface water drainage |
Water Permeability | Solid (Blocks water) | Permeable (Allows water flow) |
Load Distribution | Even distribution across solid plate | Concentrated stress on grate ribs |
Debris Management | N/A (Sealed surface) | Filters macroscopic debris |
Odor Control | High (When gasketed) | None (Open to atmosphere) |
Maintenance Frequency | Low (Periodic inspection) | High (Requires debris clearing) |
Typical Locations | Roadways, sidewalks, utility vaults | Gutters, catch basins, trench drains |
Evaluating a manhole cover vs drain grate requires understanding structural mechanics and dynamic loading. Solid covers distribute heavy traffic weight evenly across their entire surface area. The continuous plate transfers kinetic energy directly to the supporting frame and the concrete collar below. Slotted grates handle dynamic loads much differently. The open spaces introduce structural vulnerabilities. Vehicle weight concentrates heavily on the individual metal ribs spanning the opening. Engineers must increase the casting thickness and depth of a grate to match the overall strength of a solid cover.
Standard load classifications dictate installation safety and prevent catastrophic failures under traffic.
Class A: Pedestrian zones and light landscaping.
Class B: Sidewalks and light parking areas.
Class C: Medium-duty commercial parking lots.
Class D (AASHTO H-20 / EN 124 D400): Heavy-duty commercial roadways and highway traffic.
Class E & F: Airport tarmacs, shipping ports, and industrial facilities handling extreme wheel loads.
Increasing the open surface area of a grate maximizes water flow but reduces structural integrity. Manufacturers balance this trade-off through advanced rib geometry, cross-bracing, and increased material density.
Hydraulic performance relies on accurate rainfall intensity calculations. Civil engineers use the Rational Method to determine expected runoff volumes for a specific catchment area. A drain grate must feature enough open-area percentage to handle this exact volume. Insufficient open area causes surface pooling and bypass flow. Excessive open area compromises structural strength and allows oversized debris into the catch basin.
Grate patterns directly impact water intake velocity and maintenance frequency.
Slotted Patterns: Offer high flow rates and rapid intake but allow larger debris to pass into the sump.
Reticuline Patterns: Form a web-like structure that filters smaller debris effectively but reduces overall intake speed.
Diagonal Patterns: Deflect water into the basin efficiently on sloped roadways.
ADA-Compliant Patterns: Feature very narrow slots that restrict hydraulic capacity significantly, requiring larger overall grate dimensions to compensate.
Ergonomics play a major role in casting design and field operations. Heavy solid covers require specialized lifting tools to prevent severe back injuries. Pick bars, J-hooks, and integrated lift holes allow workers to remove them safely. Drain grates often feature hinged designs. Hinges allow solitary workers to clear debris quickly without lifting the entire casting weight out of the frame.
Security integrations prevent unauthorized utility access and vandalism. Manhole covers utilize cam locks, penta-head bolts, and specialized key assemblies. These mechanisms protect critical telecom and electrical networks from tampering or sabotage. Modern infrastructure now includes IoT smart sensors mounted directly to the castings. Solid covers house security breach alerts that notify facility managers if a cover is moved. Drain grates integrate ultrasonic water-level sensors. These monitor catch basin depths in real-time and trigger flood warnings before surface pooling occurs.
Ductile iron remains a common choice for heavy-duty roads and municipal infrastructure because it provides high strength and handles truck traffic well. Its main weakness is corrosion, especially in coastal, chemical, and salt-exposed areas, so protective coatings such as bitumen or epoxy are often used. Iron covers can also be customized with utility markings, logos, or safety messages during casting.
Galvanized steel is useful for industrial trench drains because it combines high strength with good corrosion resistance and can support larger open areas. Aluminum is lighter and naturally corrosion-resistant, making it suitable for pedestrian areas, plazas, and decorative projects. However, aluminum has limited load capacity and should generally be restricted to foot traffic and light maintenance vehicles.
Fiberglass-reinforced polymer (FRP) composites provide strong resistance to chemicals, salt, and corrosion, making them suitable for harsh sewer environments. They are also lightweight, have little scrap value, and allow radio signals to pass through, which benefits smart monitoring systems. Because they weigh much less than iron, composite covers can also reduce lifting effort and make routine maintenance safer.
ADA rules set strict requirements for drainage grates used in pedestrian areas. Openings should generally be no larger than 0.5 inches in the main direction of travel, helping prevent wheelchair wheels, canes, and crutches from getting caught. Elongated openings should run across the walking path, while 0.25-inch or smaller openings may be needed in areas where high-heel safety is a concern. Because smaller openings reduce water flow, engineers may need a larger grate area to maintain proper drainage while meeting accessibility requirements.
Manhole covers and drainage grates must provide enough grip for both vehicles and pedestrians, especially in rain, snow, or icy conditions. Raised surface patterns and anti-slip coatings can improve traction by helping move water away from the contact surface. In areas used by bicycles and motorcycles, stronger anti-slip surfaces can reduce the risk of slipping. In cold climates, covers should also have tapered or recessed edges and be installed flush with the pavement to prevent snowplow blades from catching the edges.
Local authorities may require specific markings on manhole covers and grates to identify utilities such as Sanitary Sewer, Storm Drain, Water, or High Voltage, helping maintenance crews and emergency responders identify the correct system. Environmental rules may also require messages such as “Dump No Waste – Drains to Waterway” on drainage grates to discourage illegal dumping and protect rivers, lakes, and other waterways. Missing required markings can lead to failed inspections and project delays.
Heavy iron covers need regular maintenance such as rust removal and recoating, and their weight can increase inspection labor because lifting equipment or two workers may be required. Composite covers reduce these maintenance needs because they do not rust and are much lighter. Drain grates also need regular cleaning to prevent debris buildup and flooding, while hinged designs can make cleaning faster by allowing crews to open the grate, clear the sump, and close it again easily.
Replacing an existing cover or grate requires careful frame matching because different products may have different seating depths, load designs, and locking points. A poor fit can cause movement, noise, and damage to the surrounding concrete, so full frame replacement is often needed during major retrofits. A typical process includes removing the old frame, installing new grade rings and mortar, setting the new frame to the correct road level, and adding a strong concrete collar before reopening the area to traffic. Self-leveling frames can also reduce pavement damage by moving with the road during freeze-thaw cycles.
Unsealed manhole covers can allow rainwater into sanitary sewers, increasing treatment costs and raising the risk of sewer overflows. Gasketed covers with neoprene or EPDM seals provide a tighter connection between the cover and frame and can greatly reduce water entry. Lowering I&I helps protect sewer capacity, reduce treatment costs, prevent overflows, and limit the risk of sewage reaching local waterways.
Heavy metal covers and grates can be stolen for scrap value, leaving open manholes that create serious risks for pedestrians and vehicles. Locking systems, tamper-resistant hinges, and other security features can reduce unauthorized removal. Composite covers and grates provide another option because they have little or no scrap value, helping reduce theft, emergency repairs, and the safety risks caused by missing covers.
The choice between a solid cover and a slotted grate dictates the success of your surface infrastructure. Solid covers guarantee secure, dry utility access and protect against I&I. Permeable grates ensure active surface water drainage and critical debris filtration. Selecting the wrong casting compromises structural safety, causes flooding, and triggers regulatory compliance failures.
Prioritize load rating above all else to ensure the casting withstands its environmental traffic demands. Next, ensure strict adherence to ADA and OSHA regulations for pedestrian safety. Evaluate hydraulic requirements carefully to prevent surface flooding in low-lying areas. Finally, select materials based on environmental corrosiveness, smart-grid integration needs, and local theft risks.
Consult local municipal engineering standards to verify required casting stamps, locking mechanisms, and environmental messaging.
Calculate the required hydraulic intake using the Rational Method before sizing a catch basin grate for a specific catchment zone.
Engage directly with a structural casting manufacturer to verify load ratings, frame compatibility, and seating depths.
Specify watertight, bolted, and gasketed covers for all sanitary sewer applications to prevent inflow and infiltration.
Transition to composite materials in areas suffering from high rates of scrap metal theft or severe chemical corrosion.
A: A manhole cover is a solid plate designed to provide secure access to underground utilities while keeping water out. A drain grate is slotted or perforated to allow surface water to flow into a stormwater catch basin while filtering debris.
A: No. Sanitary sewers require solid, often gasketed manhole covers to prevent surface water inflow and infiltration (I&I) and to contain hazardous sewer gases.
A: Generally, no. While the outer diameters may match, the seating depth, load-bearing profile, and locking mechanisms usually differ, requiring a full frame replacement to ensure structural integrity and prevent rattling.
A: To be ADA-compliant, a drain grate must have openings no greater than 0.5 inches in one direction. Elongated openings must be placed perpendicular to the dominant direction of travel to prevent wheelchair casters or walking aids from getting stuck.
A: Load ratings are determined by the installation location. Pedestrian areas require Class A. Roadways require AASHTO H-20 or HS-20 (or EN 124 Class D400) ratings to withstand heavy commercial vehicular traffic.
A: Composite covers are highly resistant to corrosion and weigh significantly less, reducing worker injury risks. They allow signals from underground IoT smart sensors to pass through and have no scrap metal value, eliminating theft.
A: Size is calculated based on the maximum anticipated rainfall intensity for the area, the size of the drainage catchment zone, and the open surface area percentage of the specific grate design to ensure it handles the hydraulic load.
