Specifying access covers carries high stakes. Get it wrong, and you face catastrophic failure, severe worker injury, or massive infrastructure damage. Facility managers, contractors, and municipalities constantly fight mismatched load ratings, incorrect sizing, and rapid material degradation. These oversights force premature replacements and create serious safety hazards on active sites.

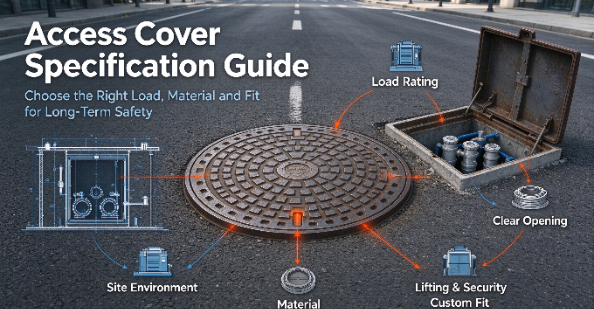

Successfully purchasing a manhole cover demands a rigorous site evaluation. You have to assess environmental demands, exact load specifications, and material properties. Precise measurement protocols and shipping logistics dictate the success of your project. An access cover is a structural bridge over critical utilities, not just a lid. Nailing this specification guarantees long-term safety and operational efficiency for your infrastructure.
Load Rating is Non-Negotiable: Selecting the correct load capacity (e.g., pedestrian vs. AASHTO H-20/HS-20) is the single most critical factor for safety and compliance.
Precision Measurement Prevents Failure: Distinguishing between the "clear opening," the cover diameter, and the frame size is essential to avoid ordering incompatible, non-returnable units.
Material Dictates Lifespan: The choice between cast iron, fabricated steel, aluminum, and composite materials must align with the specific environmental and chemical exposures of the site.
Ergonomics and Access Matter: Factoring in lifting mechanisms, hinge options, and worker safety is just as important as the cover's structural integrity.
Custom vs. Standard Trade-offs: Direct-from-manufacturer custom covers often eliminate the prohibitive costs and labor associated with tearing out and replacing existing concrete frames.
Table of Contents
Site traffic, vehicle speed, weather, and chemical exposure all affect cover selection. Fast highway traffic creates higher impact loads, while turning vehicles create strong twisting forces that can move a poorly fitted cover. Freeze-thaw cycles can loosen frames, snowplows can damage raised edges, and environments such as sewers, coastal areas, and chemical plants can accelerate corrosion. Check traffic conditions, climate, and chemical exposure before choosing the cover material and load rating.
Access covers must meet the standards required for their location and use. AASHTO H-20 covers are designed for a 16,000-pound wheel load, while ADA requirements limit grate openings to 0.5 inches in the direction of travel and call for slip-resistant surfaces in pedestrian areas. Local municipal requirements must also be checked, while OSHA guidance may require lifting aids or spring-assisted hinges for heavy covers to reduce worker injuries.
Frequent access points should be designed around safe handling, especially when heavy covers need to be opened regularly. Lightweight materials, hinges, or assisted lifting systems can reduce worker strain and injury risk. In visible areas such as plazas, campuses, and pedestrian zones, recessed covers can also improve appearance by holding concrete, tile, or paving materials that match the surrounding surface.
Cast iron is a long-established choice for municipal roads because it provides high load capacity, good durability, and effective vibration control. However, it is heavy, can rust without proper maintenance, and has high scrap value, which increases theft risk. It is best suited to heavy traffic areas where strength and long-term durability are the main priorities.
Fabricated steel is useful for custom access covers because it can be cut and welded to match unusual dimensions and is lighter than cast iron. Diamond plate surfaces provide additional traction for vehicles and pedestrians. Steel should be protected with hot-dip galvanizing or industrial coatings in wet or corrosive environments and is suitable for parking areas, driveways, custom vaults, and walkways.
Aluminum is lightweight, naturally corrosion-resistant, and easy for one worker to handle, making it useful for frequent-access areas and locations where spark resistance is important. However, it has lower load capacity than iron or steel and can bend under heavy vehicle loads, so it is generally better suited to pedestrian areas, water facilities, marinas, and other low-traffic applications.
Composite materials solve many traditional infrastructure problems simultaneously. Fiberglass-reinforced polymers have zero scrap value. This completely eliminates the risk of theft in urban environments. Composites are non-conductive, protecting workers from stray voltage in electrical vaults. They are also radio-frequency (RF) transparent. This allows smart metering signals to pass through the lid without interference. Composites resist highly corrosive sewer gases perfectly, never rusting or scaling.
Composites do have specific temperature limitations. Extreme heat can compromise their structural integrity over time. Every Manhole Cover made of composite material requires careful engineering to match the site's thermal profile. Composites are best for corrosive sewer environments, smart grid utilities, and high-theft urban areas.

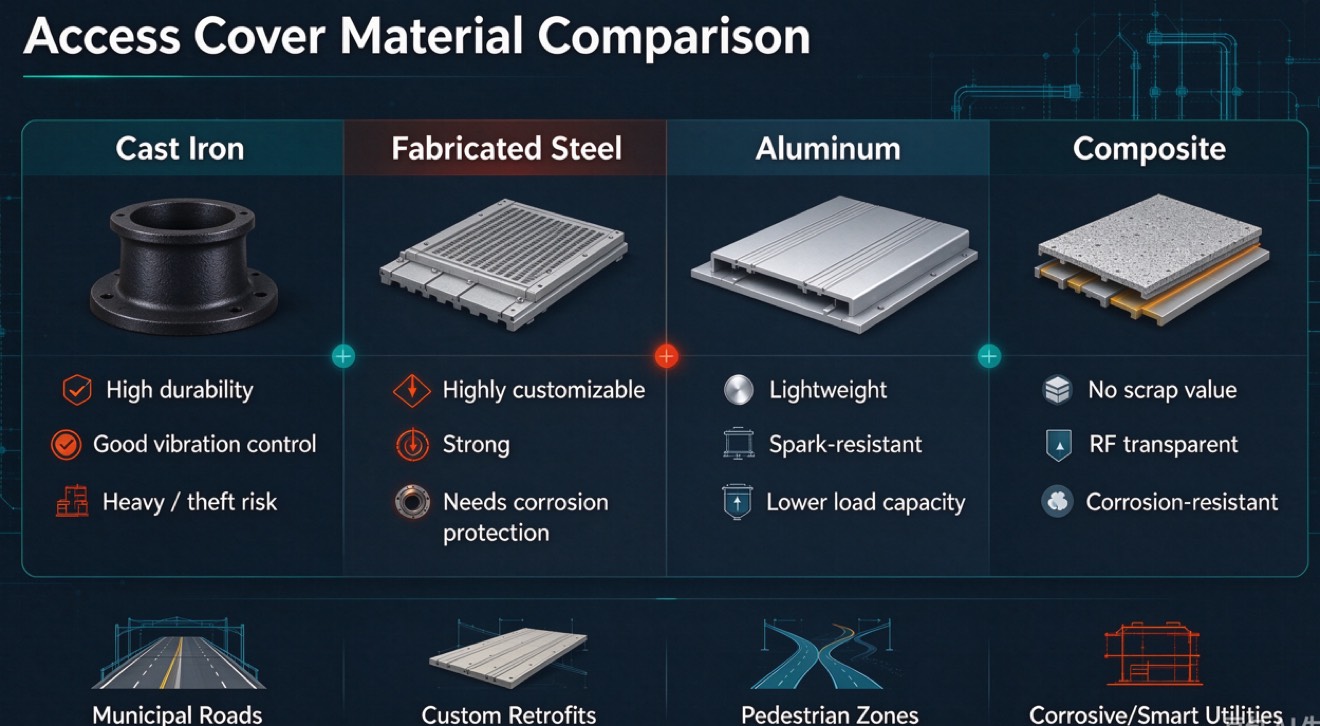

Material | Primary Advantage | Primary Disadvantage | Best Application |
|---|---|---|---|
Cast Iron | Vibration dampening, extreme durability | Heavy, high theft risk | Highways, municipal roads |
Fabricated Steel | Highly customizable, lighter than iron | Requires galvanization to stop rust | Custom retrofits, parking lots |
Aluminum | Lightweight, spark-resistant | Low load-bearing capacity | Water treatment, pedestrian zones |
Composite | Zero theft value, RF transparent | Higher initial purchase price | Corrosive sewers, smart utilities |
Understanding standard load tiers prevents catastrophic failure on your site. Light Duty covers handle pedestrian traffic, bicycles, and light landscaping equipment. Medium Duty covers support passenger cars and light pickup trucks. Heavy Duty covers meet H-20 or HS-20 standards for commercial trucks, garbage trucks, and fire engines. Airport or Extra Heavy Duty covers support massive aircraft wheel loads and heavy port machinery.
Under-specifying load ratings to save money is incredibly dangerous. A medium-duty cover placed in a heavy-duty traffic lane will crack under the point load of a commercial tire. When it fails, it drops vehicles into the vault below. This causes severe damage and opens you up to massive liability. Always specify the load rating based on the heaviest possible vehicle that could access the area, even accidentally during an emergency.
Load Tier | Weight Capacity (Approx.) | Typical Application |
|---|---|---|
Light Duty (Pedestrian) | Up to 300 lbs / sq. ft. | Sidewalks, parks, residential landscaping |
Medium Duty | Up to 10,000 lbs | Driveways, light parking lots, alleyways |
Heavy Duty (H-20/HS-20) | 16,000 lbs wheel load | Highways, commercial loading docks, city streets |
Extra Heavy Duty | 100,000+ lbs | Airports, heavy industrial ports, military bases |
Accurate measurements are essential for a proper fit. Record the clear opening, cover diameter, frame size, and cover thickness, and never assume older infrastructure uses standard sizes. Clean the frame first, then measure each dimension at least three times to check for distortion or unevenness. The replacement cover should sit flush with the pavement; a cover that is too high can be damaged by snowplows, while one that is too low can create trip hazards and collect water.
Round covers are widely used because they cannot fall through their own openings, while square or rectangular covers may need hinges or safety grates to prevent them from dropping into the vault. Choose the lifting system based on cover weight and maintenance needs, such as pick holes, concealed handles, recessed handles, or spring-assisted hinges for large and heavy covers. The design should allow safe and practical access without creating surface hazards.
Gasketed covers help keep rainwater out of sanitary sewers and reduce sewer odors, while neoprene or EPDM gaskets can provide water- and gas-tight sealing. Security options include bolted covers, cam locks, and pentagon bolts, with the choice depending on the required level of protection. These features help prevent unauthorized access, vandalism, and damage to underground utility systems.
Clear markings help maintenance crews identify the utility below the cover and reduce the risk of servicing the wrong system. Common labels include Sanitary Sewer, Storm Drain, Electrical, and Communications, while logos can identify the owner. Custom markings may also be required by local codes and can help prevent mistakes such as sending stormwater equipment to a sanitary sewer line.
Standard covers may be available quickly, but they often do not fit older frames correctly. A poor fit can cause rocking, noise, and early failure, while replacing the entire frame adds concrete cutting, excavation, heavy equipment, labor, traffic control, and curing time. The total retrofit cost can therefore be much higher than the price of the cover itself.
Custom-made covers can match existing openings and frames more accurately, allowing simple drop-in replacement with less site work. This is especially useful for old or unusual openings with non-standard sizes, shapes, or damaged frames. A close fit can reduce concrete removal, installation time, traffic disruption, and overall labor costs.
Large access covers usually require LTL freight, so confirm whether the site has a forklift or loading dock and request liftgate delivery when needed. Inspect the shipment before signing the Bill of Lading and photograph any damage, such as bent hinges, missing hardware, or cracked composite edges. Recording damage immediately makes freight claims much easier to handle.
Accurate procurement starts with the correct load rating, dimensions, material, and site requirements. First measure the clear opening, cover diameter, and thickness and record them with photos; then determine the maximum vehicle load and required AASHTO rating, select a material suited to the site's environment, and provide the exact dimensions to a direct manufacturer when ordering a replacement to reduce costly frame and concrete work.
Successfully procuring access infrastructure is a highly technical decision. It hinges on accurately matching load ratings, materials, dimensions, and logistical requirements to your specific site environment. Prioritize safety and load ratings first. Ensure a perfect fit through precise measurement second. Choose materials for longevity third, and select operational features like locks and gaskets last.
Measure the clear opening, cover diameter, and thickness using a steel tape measure and document with photos.
Identify the maximum potential vehicle weight that could cross the access point to determine the correct AASHTO load rating.
Select a material that withstands your specific site's chemical exposure, theft risk, and environmental stressors.
Contact a direct manufacturer with your exact dimensions to specify a drop-in replacement and avoid costly concrete tear-outs.
A: An H-20 rating is an engineering standard set by AASHTO for heavy-duty traffic. It certifies that the cover can safely support a 16,000-pound wheel load or a 32,000-pound axle load. This is the mandatory standard for commercial trucks, fire engines, and public highway infrastructure.
A: You must measure three specific dimensions. Measure the exact diameter of the existing cover. Measure the thickness of the cover edge. Finally, measure the "clear opening," which is the inside diameter of the frame hole. Always measure in multiple spots to ensure the frame is perfectly round.
A: You can purchase just the cover. However, the new cover must match the exact dimensions and lip style of your existing frame. Custom manufacturers can fabricate drop-in replacements that fit your old frame perfectly, saving you from costly concrete tear-outs.
A: Round covers provide a critical geometric safety feature. A circular cover cannot fall through its own circular opening, regardless of how it is turned or angled. Square or rectangular covers can easily slip through diagonally, creating a massive safety hazard for workers below.
A: Cast iron is extremely heavy, dampens vibration well, but can be brittle and holds high scrap value. Fabricated steel is lighter, highly customizable for odd sizes, and very durable. However, steel requires galvanization or specialized coatings to prevent rapid rusting.
A: Yes. ADA-compliant covers are readily available. They must feature aggressive, slip-resistant surface textures. Additionally, any grate openings or gaps cannot exceed one-half inch in the direction of travel to prevent wheelchairs and walking aids from getting stuck.
