The forecourt of a fueling facility operates as a high-liability environment. Surface-level infrastructure directly dictates subsurface safety, environmental compliance, and operational continuity. Heavy commercial vehicles constantly navigate these spaces, exerting massive torsional forces on every surface component. When infrastructure fails, the consequences compound rapidly. Degraded, improperly rated, or unsealed covers allow surface water to intrude into underground fuel systems. This water ingress causes severe environmental contamination and triggers massive EPA fines. It also creates immediate pedestrian trip-and-fall hazards over compromised access points.

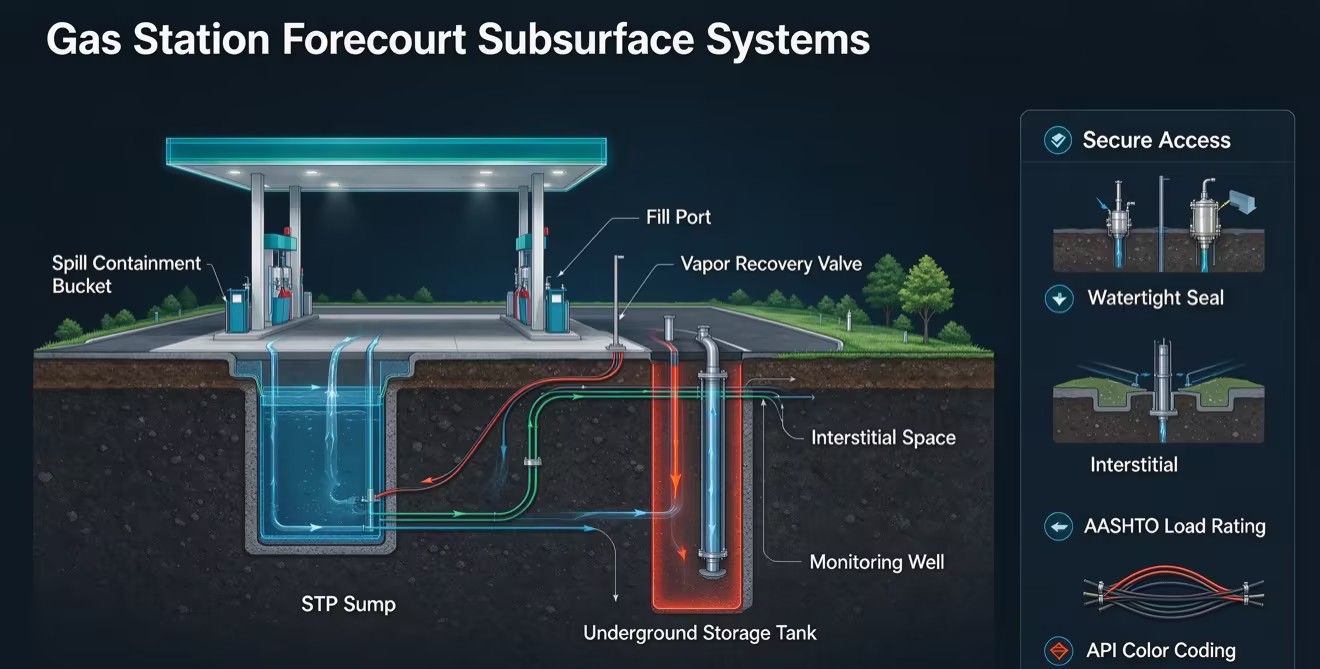

Facility operators must understand the specific subsurface systems protecting their assets. Underground storage tanks (USTs), vapor recovery lines, and submersible sumps require specialized protection. You must accurately evaluate and specify the correct replacement gas station manhole covers to maintain strict regulatory compliance. Selecting the right materials and load ratings ensures long-term durability, safeguards employees, and keeps fuel lanes open for continuous operation.
System Protection: Gas station manhole covers protect critical infrastructure, including spill containment buckets, vapor recovery systems, and Submersible Turbine Pump (STP) sumps.
Load Compliance: Any replacement cover must meet or exceed AASHTO H-20/HS-20 load ratings to withstand constant heavy commercial vehicle traffic without fracturing.
Material Trade-offs: The industry is shifting from traditional cast iron to lightweight composite materials to reduce worker injury risks, eliminate corrosion, and deter scrap metal theft.
Water Tightness: Effective sealing mechanisms are non-negotiable to prevent surface water runoff from breaching underground storage tanks (USTs) and triggering phase separation in ethanol-blended fuels.
Table of Contents
Spill containment buckets serve as the primary catch basin during bulk fuel deliveries. When a delivery driver disconnects the transfer hose, residual fuel inevitably drips. The spill bucket catches these hazardous drips before they reach the surrounding soil. These buckets typically hold between five and fifteen gallons of liquid. They feature a drain valve or require a hand pump to remove accumulated product. The surface cover acts as the first line of defense for this entire assembly. It prevents dirt, debris, and rain from entering the bucket. If debris clogs the drain valve, the bucket loses its containment capacity. If water enters the fill pipe during a delivery, it directly contaminates the underground storage tank.
The delivery process relies heavily on the integrity of these access points. A standard fuel drop involves several specific steps where the cover plays a protective role:
The driver secures the perimeter and removes the cover to access the fill port.
The driver visually inspects the spill bucket for existing liquid, ice, or debris that might compromise capacity.
The transfer hose is connected directly to the fill pipe, bypassing the bucket itself.
Following the transfer, the driver disconnects the hose, allowing any residual product in the line to drain safely into the containment bucket.
The driver secures the fill cap and replaces the surface cover, sealing the system against weather and traffic.
Fuel transfer displaces massive volumes of hazardous fumes. Vapor recovery systems capture these volatile organic compounds (VOCs) and prevent them from entering the atmosphere. Stage I systems manage vapors during bulk delivery from the tanker truck to the UST. Stage II systems handle vapors displaced at the dispenser nozzle. Vapor recovery valves sit just below the forecourt surface. They require specific vertical clearance to function correctly. Technicians must easily access these ports to connect recovery hoses. The covers protecting these valves must align perfectly with the subsurface piping. Misaligned covers cause hose kinks, slowing down deliveries and risking vapor leaks.
Comparison of Vapor Recovery Systems | |||
System Type | Primary Function | Access Frequency | Cover Alignment Requirement |
|---|---|---|---|
Stage I | Captures vapors during bulk tanker deliveries to the UST. | High (Every fuel delivery) | Strict vertical clearance needed for heavy hose connections. |
Stage II | Captures vapors at the consumer dispenser nozzle. | Low (Maintenance and testing only) | Moderate clearance for testing equipment and valve inspection. |
Submersible Turbine Pump (STP) sumps house pumps, electrical lines, fuel pipes, and leak sensors, making them one of the most complex areas below a gas station. Because technicians need regular access for sensor checks, filter replacement, pump inspection, and leak testing, these sumps often require large 36–42 inch openings. The covers must handle heavy vehicle traffic while still being practical for a technician to remove during routine maintenance.
Monitoring wells are used to check soil and groundwater around underground fuel tanks, while interstitial spaces are the gaps between the walls of double-wall tanks. These access points are much smaller than STP sumps, typically about 8–12 inches wide, and usually include locking systems to prevent unauthorized access or accidental disposal of fuel and waste into the monitoring wells.
Forecourt covers must handle heavy truck loads and turning forces. AASHTO H-20 and HS-20 ratings indicate capacity for about 32,000–40,000 pounds of axle load, suitable for fuel tankers and commercial trucks. Selection should consider both vertical loads from parked vehicles and twisting forces from trucks turning directly over the cover, so the cover and mounting frame must remain stable without cracking or shifting.
Water-tightness is critical for fuel tank access because water entering an underground storage tank can damage fuel quality, especially with ethanol-blended fuels. Bolted covers provide strong sealing but take longer to open, while cam-lock systems allow faster access with good sealing. Replaceable Buna-N or Viton gaskets can help resist fuel vapors, moisture, and weather, reducing the risk of water entering the tank.
Evaluation of Sealing Mechanisms for Forecourt Covers | |||
Mechanism Type | Access Speed | Compression Strength | Maintenance Requirement |
|---|---|---|---|
Drop-in (No Seal) | Very Fast | None (Relies on gravity) | Low (Clear debris from channel) |
Cam-Lock | Fast (Quarter-turn) | High | Medium (Lubricate cams, check gaskets) |
Bolted Down | Slow (Requires tools) | Very High | High (Replace stripped bolts, torque checks) |
Traditional forecourt infrastructure presents severe occupational hazards. A standard 36-inch cast iron cover can weigh well over 150 pounds. Lifting these lids daily causes acute back injuries and long-term musculoskeletal damage to technicians. You must evaluate replacement covers based on their weight-to-strength ratios. Look for integrated lift-assist mechanisms or designs that accommodate specialized removal tools. Pedestrian safety carries equal importance. Forecourts become slick with spilled diesel and rain. Covers must feature ADA-compliant, slip-resistant surface texturing. This aggressive texturing prevents pedestrian slip-and-fall liabilities. Smooth or worn covers create immediate legal risks for facility operators.
Subsurface fuel systems remain highly vulnerable to unauthorized access. Criminals target these access points to siphon thousands of gallons of fuel. Scrap metal thieves frequently steal heavy iron covers, leaving massive, unprotected holes in the forecourt. You must prioritize security when evaluating replacements. Integrated locking mechanisms prevent unauthorized fuel drops and theft. Specialized security bolts require proprietary tools for removal, deterring casual tampering. Material selection plays a massive role in theft prevention. Non-metallic materials hold absolutely zero scrap value, completely eliminating the incentive for metal thieves to target your facility.
Cast iron is a traditional choice for gas station covers because it handles heavy truck loads and high temperatures well. However, it is heavy, can rust in wet or salt-exposed areas, and may rattle or shift if not seated correctly. Its high scrap value also increases theft risk, which can create serious safety and liability problems.
Fiberglass and composite covers are lighter and resist water, chemicals, and corrosion, making them well suited to fuel station environments. They can weigh about one-third as much as cast iron, reducing lifting effort, while molded anti-slip surfaces improve pedestrian safety. They also have little scrap value, which helps reduce theft, but should include suitable UV protection for long-term outdoor use.
When comparing cover materials, consider performance over a 15-year service life, including maintenance, traffic loads, seals, and replacement parts. Cast iron may need regular rust protection and repainting, while composite covers should be checked for structural durability and possible damage over time. Review warranties carefully, especially coverage for structural failure, sealing gaskets, and replacement hardware.
Environmental Protection Agency (EPA) regulations govern every subsurface fuel component. Spill Prevention, Control, and Countermeasure (SPCC) rules mandate strict containment standards. When a surface cover fails, water and debris fill the containment sumps. Environmental regulators inspect these sumps rigorously. An inspector looks for absolute sump dryness and flawless spill bucket integrity. If an inspector finds standing water or fuel-contaminated liquid in a sump, they issue immediate violations. These violations halt facility operations until the operator pumps out the liquid and repairs the breach. Proper surface sealing prevents these compliance failures. The cover acts as the primary barrier keeping the facility in good standing with state and federal environmental agencies.
The American Petroleum Institute (API) established Recommended Practice 1637 to standardize fuel identification. This color-coding system prevents catastrophic cross-drops during fuel delivery. A cross-drop occurs when a driver accidentally pumps diesel into a premium gasoline tank. The API system dictates specific colors for specific products. You must evaluate how replacement covers accommodate these critical markings. Cast iron covers require specialized industrial paint, which frequently chips and fades under tire traffic. Composite covers often feature molded-in color plates or recessed rings. These integrated color indicators resist wear, ensuring delivery drivers can always identify the correct fill port.
API RP 1637 Standard Color Codes for Forecourt Covers | ||
Fuel Product Type | API Standard Color Code | Symbol Designation |
|---|---|---|
Premium Unleaded Gasoline | Red | Solid Circle |
Regular Unleaded Gasoline | White | Solid Circle |
Diesel Fuel | Yellow | Hexagon |
E85 Ethanol Blend | Bronze | Solid Circle |
Older mounting frames can warp, settle, or become damaged, making direct replacement risky. Before ordering a new cover, measure the existing frame at several points and check for distortion. If the frame is still structurally sound but slightly out of shape, a universal retrofit ring can provide a proper seat for the new cover without major concrete work.
Full frame replacement can interrupt fuel station operations because it requires concrete cutting, excavation, and new concrete. When possible, use drop-in Gas Station Manhole Covers to reduce installation time. For full replacements, schedule work during low-traffic periods, use rapid-curing concrete that can reach 3,000 PSI within a few hours, and complete one fueling lane at a time to keep other lanes open.
Freeze-thaw cycles can damage the concrete around covers, while snowplows can catch raised edges and pull the assembly out of place. Use flush-mounted covers and freeze-resistant gaskets in cold regions, and slope the surrounding concrete slightly away from the access point to keep rain and melting snow away from the sump.
Gas station covers need regular inspection because sand, fuel, and other debris can damage seals and locks or prevent the lid from seating correctly. A monthly inspection should include cleaning the frame, checking Buna-N or Viton gaskets for damage, lubricating and testing cam-locks, checking security bolt torque, and confirming that API color-coded plates remain visible and secure.
Audit your forecourt infrastructure using laser measurements to identify warped skirts and compromised seals before ordering replacement units.
Specify AASHTO H-20/HS-20 rated composite covers to eliminate scrap metal theft and reduce technician lifting injuries.
Implement a monthly maintenance schedule focused on clearing debris from mounting channels and inspecting Viton gaskets for dry rot.
Consult with a certified petroleum equipment distributor to ensure your selected covers match the required API color codes for your specific fuel tanks.
A: The industry standard requires covers to meet AASHTO H-20 or HS-20 load ratings. These ratings certify that the cover and its mounting skirt can safely withstand a 32,000 to 40,000-pound axle load. This ensures the infrastructure handles the extreme static and torsional forces exerted by fully loaded commercial fuel delivery tankers.
A: Covers utilize the API RP 1637 color-coding system to identify the specific fuel grade stored in the underground tank. For example, red indicates premium gasoline, while a white circle with a black cross indicates diesel. This standardization prevents delivery drivers from making catastrophic cross-drops and mixing incompatible fuels.
A: Preventing water intrusion requires a multi-layered approach. You must utilize covers equipped with high-compression cam-locks and chemical-resistant Viton or Buna-N gaskets. The surrounding concrete must be graded to slope away from the cover, directing surface runoff away from the vulnerable access point.
A: Tank sump covers are massive, often 36 to 42 inches in diameter, designed to allow technician entry for pump maintenance. Monitoring well covers are much smaller, typically 8 to 12 inches. They feature specialized security bolts to prevent unauthorized dumping into critical environmental groundwater testing pipes.
A: Yes, you can easily retrofit composite covers. If the existing steel skirt is perfectly round and structurally sound, you can often use a drop-in composite replacement. If the old skirt is warped, you must install a universal retrofit ring or excavate the concrete to install a new matching frame.
A: Facilities prevent theft by transitioning from traditional cast iron to advanced composite materials. Composite covers contain no metal and hold absolutely zero scrap value, removing the financial incentive for thieves. Operators also utilize proprietary security bolts that require specialized tools for removal.
