Specifying incorrect grating in public or commercial spaces creates a severe physical injury risk to pedestrians and massive legal liability for property owners and contractors. Civil engineers and architects constantly battle a core design problem. They must maximize hydraulic capacity to handle surface water intake while meeting strict accessibility mandates that require unbroken surface continuity. This engineering conflict peaks in high-traffic or heavy-load environments where water volume and pedestrian safety collide. You cannot compromise on either requirement. This technical evaluation guide helps architects, civil engineers, and facility managers correctly specify ADA compliant drain grates based on rigid regulatory standards, material performance limits, and site-specific load-bearing requirements. We break down the exact dimensional rules, material trade-offs, and hydraulic calculations necessary to achieve total compliance without sacrificing drainage performance.
Strict Dimensional Limits: ADA compliance mandates that grate openings must not allow passage of a sphere larger than 1/2 inch (13 mm) in diameter to prevent wheelchair casters and walking canes from becoming trapped.
Directional Orientation: Elongated openings must be placed so that the long dimension is perpendicular to the dominant direction of pedestrian travel.
Load vs. Compliance Balance: Specifiers do not have to sacrifice durability; heavy-duty materials like ductile iron can achieve ADA compliance while supporting vehicular traffic (e.g., Load Class C).
Liability Mitigation: Utilizing certified ADA compliant solutions is a non-negotiable requirement under the U.S. Access Board guidelines for public rights-of-way, commercial facilities, and plumbing elements.
Table of Contents
The Americans with Disabilities Act (ADA) Accessibility Guidelines establish the statutory baseline for accessible design. The U.S. Access Board dictates these federal requirements. Chapter 3 covers floor and ground surfaces, mandating that surfaces remain stable, firm, and slip-resistant under all weather conditions. Chapter 4 details accessible routes, strictly limiting vertical changes in level across any walking path. Chapter 6 governs plumbing elements and facilities, directly impacting drainage systems in locker rooms, public restrooms, and shower facilities. Compliance is a strict geometric and spatial requirement enforced by federal law. Engineers must treat these chapters as primary design constraints when selecting any surface-level drainage component. Field inspectors routinely use smart levels and physical gauges to verify these tolerances before issuing a Certificate of Occupancy.
The defining metric for ADA compliance is the 1/2-inch rule. Grate openings must not allow a sphere larger than 1/2 inch (13 mm) in diameter to pass through. This specific dimension stems from the mechanics of mobility aids. Wheelchair casters, walking canes, and crutch tips easily drop into wider gaps. When a caster drops into a slot, sudden deceleration throws the user forward, causing severe injury. Standard grate manufacturing favors wide slots to maximize open surface area for water intake. Manufacturers must re-engineer their casting and fabrication processes to tighten these tolerances. Reducing the gap to a maximum of 1/2 inch inherently restricts water flow, forcing designers to rethink trench widths, system lengths, and overall catchment basin sizing.
Manufacturers utilize different geometric patterns to satisfy the 1/2-inch maximum opening rule while optimizing hydraulic efficiency. Each pattern uniquely balances the strict gap requirement with the physical need to move surface water into the trench body.
Grate Pattern | Hydraulic Efficiency | Directional Compliance | Best Application |
|---|---|---|---|
Slotted | High | Single-Direction Only | Linear sidewalks, defined crosswalks. |
Perforated | Low to Medium | Multi-Directional | Plazas, open courtyards, barefoot zones. |
Mesh / Grid | Medium to High | Multi-Directional | Transit hubs, heavy pedestrian traffic areas. |
Spatial geometry rules dictate the installation orientation of elongated slots. The ADA requires that elongated openings be placed so the long dimension is perpendicular to the dominant direction of pedestrian travel. If a wheelchair travels parallel to a long slot, the wheel tracks into the gap and becomes wedged. Determining the dominant direction of travel is straightforward on a standard linear sidewalk. It becomes highly complex in open architectural layouts like public plazas, transit hubs, or multi-directional intersections. In areas lacking a single dominant travel path, specifiers must utilize grates with multi-directional compliance, such as perforated patterns or mesh designs with openings restricted to 1/2 inch in all directions.
Surface continuity is just as important as the opening size. Where Drain Grates meet the surrounding pavement or trench edge, the transition must be seamless. The ADA restricts vertical changes in level to a maximum of 1/4 inch. Changes in level between 1/4 inch and 1/2 inch must be beveled with a slope no steeper than 1:2. Any vertical change exceeding 1/2 inch requires a ramp. A grate that sits too high creates a trip hazard. A grate that sits too low creates a sudden drop that stalls wheelchair momentum. Proper installation requires precise leveling of the trench channel using installation brackets before the concrete pour. Contractors must vibrate the concrete carefully to ensure the channel does not float, guaranteeing the final grate surface sits perfectly flush with the finished grade.
Ignoring ADA requirements can lead to failed inspections, project delays, legal claims, and costly repairs. Replacing a non-compliant drainage system after construction may require removing concrete and installing a new trench, making it much more expensive than choosing compliant grates from the start.
ADA-compliant grates help prevent wheelchair wheels and walking canes from getting caught in drainage slots and reduce trip hazards for people with limited mobility, vision impairments, or unstable footwear. The goal is to keep walking and mobility routes smooth and safe for all users.
ADA-compliant grating is needed in many areas, including public showers, pool decks, hospital entrances, retail thresholds, and commercial plazas. Each location may have different needs for drainage, chemical resistance, barefoot safety, and appearance, but all must provide safe and accessible pedestrian surfaces.

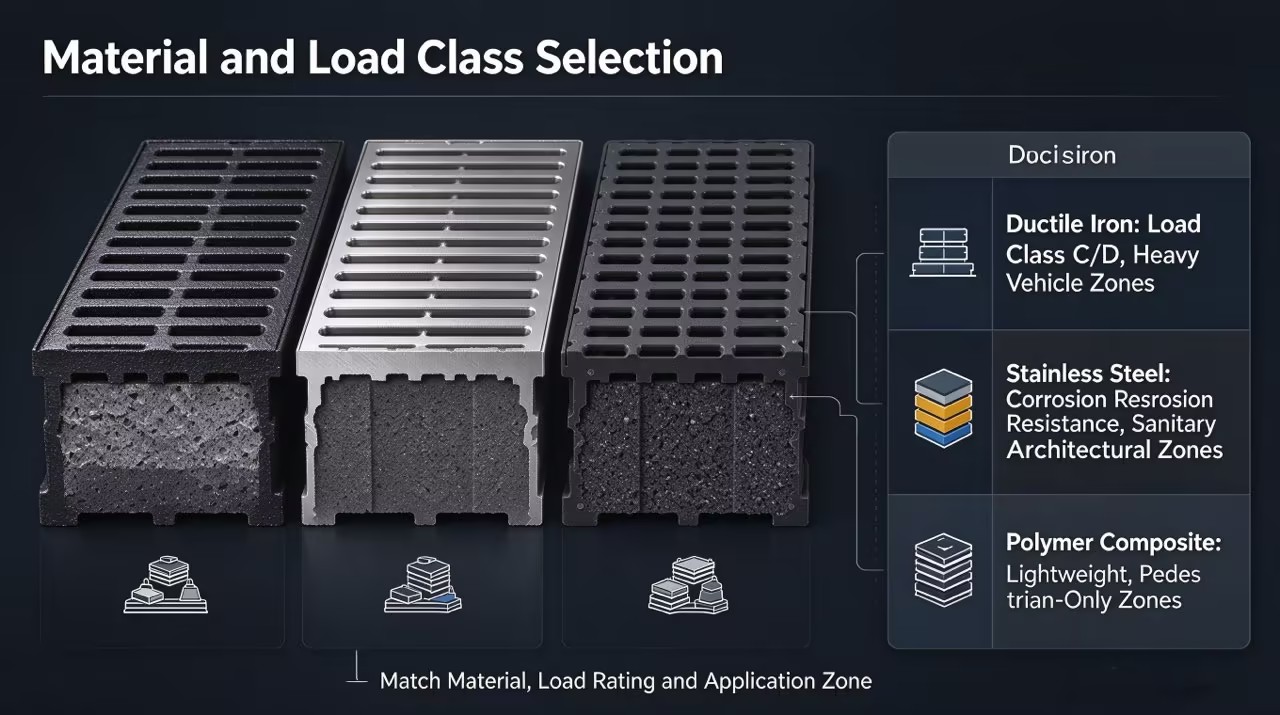

Ductile iron is suited to heavy-duty commercial areas because it offers high strength, good impact resistance, and tight slot tolerances for accessibility. It can support Load Class C or higher and is suitable for areas used by delivery trucks, forklifts, pedestrians, and other vehicles.
Steel and stainless steel grating works well in architectural, sanitary, and corrosive environments. Wedge wire designs help reduce debris buildup, while 304 and 316 stainless steel resist cleaning chemicals and corrosion. These materials are common in food plants, hospitals, kitchens, plazas, and transit areas where both performance and appearance matter.
Polymer and composite grates are lightweight options for pedestrian areas exposed to water, chemicals, or coastal conditions. HDPE and fiberglass-reinforced polymers resist rust, UV damage, and chemical attack and are easier to install and remove than metal grates. However, their load capacity is generally lower, so they are mainly used for pedestrian traffic and light maintenance vehicles.
Restricting grate openings to a maximum of 1/2 inch inherently reduces the open surface area available for water intake. Engineers must calculate hydraulic performance carefully to prevent surface ponding. A standard wide-slot grate might offer 60% open area, while a compliant narrow-slot grate drops to 30%. To achieve the necessary flow rate, you must compensate for this reduction.
Determine the peak flow rate for the specific catchment area based on local rainfall data.
Calculate the open surface area per linear foot of the specified compliant grate.
Apply a standard clogging factor (typically 50%) to account for real-world debris accumulation.
Size the trench width, depth, and internal slope to handle the restricted intake volume without overflowing.
Failing to recalculate water intake based on the specific open area of the compliant grate results in localized flooding during peak storm events.
Industry terminology often confuses heel-proof and ADA compliant specifications. They are not legally interchangeable. Heel-proof grates feature maximum openings of 1/4 inch to prevent stiletto heels from catching. Because 1/4 inch is smaller than 1/2 inch, a true heel-proof grate is inherently ADA compliant regarding opening size. Standard ADA compliant grates feature 1/2-inch openings, which are too large to be considered heel-proof. Specifiers must evaluate the specific pedestrian demographic of the site. High-end retail zones and corporate lobbies require heel-proof specifications, while standard municipal sidewalks only require the 1/2-inch ADA baseline.
A grate that meets dimensional requirements but becomes slick when wet violates accessibility standards. The coefficient of friction is a primary evaluation metric. Surface treatments maintain traction in wet conditions. Manufacturers employ various techniques to enhance slip resistance across different materials.
Raised mechanical lugs cast directly into the iron or steel surface.
Textured epoxy coatings applied over composite or metal substrates.
Abrasive grit blasted and sealed into the grate surface.
Transverse milling on stainless steel wedge wire to create micro-texture.
Specialized anti-slip paints used in low-traffic pedestrian zones.
Mapping grate materials to specific load classes ensures long-term structural integrity. The EN 1433 standard provides a reliable framework for categorizing load capacity. Specifying a grate with an inadequate load class leads to structural failure, creating immediate pedestrian hazards and voiding compliance. A cracked or deflected grate instantly violates the 1/4-inch vertical change rule.
EN 1433 Load Class | Test Load | Typical Application Zone | ADA Material Suitability |
|---|---|---|---|
Class A | 15 kN (3,372 lbs) | Pedestrian and cyclist paths only. | Polymer, Composite, Light Steel |
Class B | 125 kN (28,100 lbs) | Sidewalks, light parking areas, driveways. | Medium Steel, Light Iron, Heavy Composite |
Class C | 250 kN (56,200 lbs) | Commercial parking, curbsides, delivery zones. | Ductile Iron, Heavy-Duty Stainless Steel |
Class D | 400 kN (89,920 lbs) | Highway shoulders, heavy truck traffic. | Heavy Ductile Iron (Narrow Slot) |
Audit your current site plans to identify all pedestrian routes intersecting with surface drainage systems.
Consult with a qualified drainage engineer to recalculate trench widths based on narrow-slot open area percentages.
Request detailed technical submittals and independent compliance certificates from reputable grate manufacturers before issuing procurement orders.
Establish a post-installation maintenance schedule to ensure debris does not compromise hydraulic performance or surface safety.
A: The maximum allowable opening is 1/2 inch (13 mm). The ADA Accessibility Guidelines explicitly mandate that grate openings must not allow the passage of a sphere larger than 1/2 inch in diameter. This prevents wheelchair casters, walking canes, and crutches from dropping into the gaps and causing severe entrapment or trip hazards.
A: Yes. If the grate features elongated openings or slots, the ADA requires that the long dimension of the slot be placed perpendicular to the dominant direction of pedestrian travel. This orientation ensures that wheelchair wheels roll safely across the slots rather than tracking into them and becoming wedged.
A: Absolutely. Manufacturers engineer ductile iron with narrow slots to meet both strict ADA dimensional standards and heavy vehicular load classes. A properly designed ductile iron grate maintains a maximum 1/2-inch opening while achieving Load Class C or D, making it ideal for mixed-use zones with both pedestrians and heavy trucks.
A: No. Terms like "pedestrian safe" or "heel-proof" are industry marketing terms and do not legally equate to ADA compliance. ADA compliance requires strict adherence to statutory dimensions, specifically the 1/2-inch maximum opening and surface flushness rules. Always demand official specification sheets verifying U.S. Access Board compliance.
A: Restricting grate openings to 1/2 inch significantly reduces the total open surface area available for water intake. This reduction lowers the hydraulic capacity of the grate. To handle the same volume of water without surface ponding, engineers must specify wider trench channels or longer continuous grate runs.
A: Using non-compliant grates exposes the property owner to severe consequences. This includes failed municipal building inspections, delayed project handovers, and forced, expensive retrofits. It exposes the owner and contractors to significant civil liability and costly ADA lawsuits if a pedestrian is injured due to the non-compliant surface.
